One Color EVA Injection Molding Machine

Request a Quote

Website: http://footwear-makingmachine.com/1-3-one-color-eva-injection-molding-machine-rotary-type.html

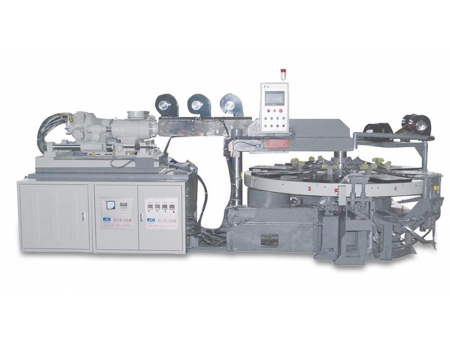

Rotary injection molding machine for shoe sole making

Strong clamping force results in quality EVA products;
The cooling system consists of water cooling and air cooling units to quick cool down the machine;
The injection molding machine is mainly applicable to EVA material and it can be used to process TPR products as well.

Material: EVA

Applications

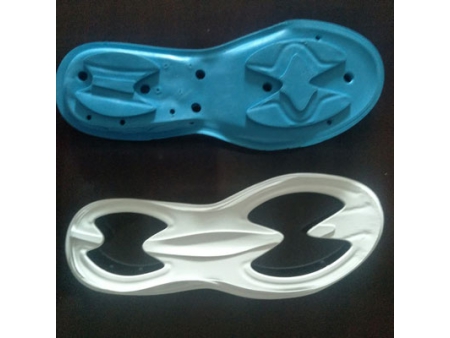

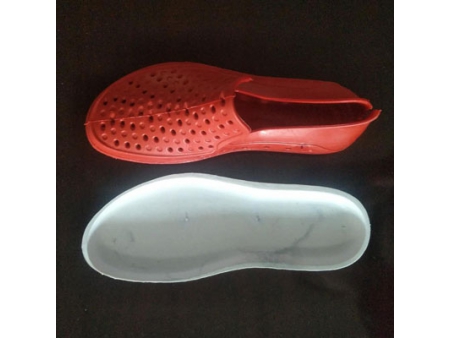

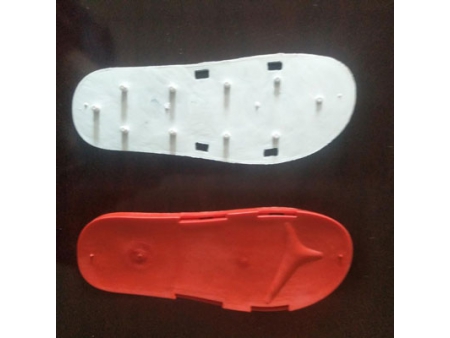

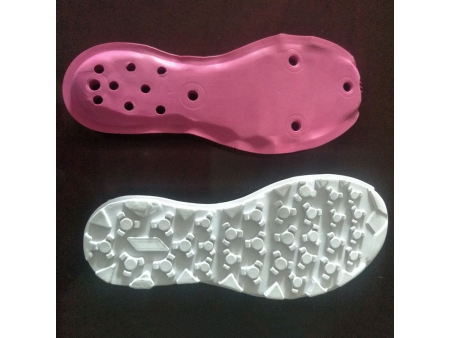

one-color EVA blank products, such as, shoe blanks

Technical Specifications

Item	Unit	Specifications
Raw material		EVA	EVA
Number of stations		6	8
Clamping forces	T	120	120
Screw diameter	mm	Ø50	Ø50
Screw rotational speed	rpm	0-190	0-190
Max. injection volume	cm³/cc	710	710
Rated injection pressure	kg/cm²	0-120	0-120
Rate of motor	kW	16	16
Rate of heating	kW	6	6
Temperature setting	stage	4	4
Max. mold dimensions	mm	280350170	280350170
Mold height	mm	50-170	50-170
Machine dimensions	mm	436023001860	436023001860
Gross weight	kg	6000	6100

Features

The EVA injection molding machine is particularly used to produce one-color EVA blanks;

The operator-friendly panel design enables easy and convenient operation;

The control system consists of an industrial interface, a PLC and laser scanning devices to control the precise injection ratio and volume;

The dual-ratio electrohydraulic control valve enables the independent control of pressure and rate of flow for stable production;

The mold closing unit is able to quickly close a mold in a stable and two-stage manner;

There is balanced stress on molds so that molds are long-lasting and products are free from uneven edge problem.

Equipped with the circulating water cooling system and the independently developed circulating air cooling unit, the injection molding machine quickly cools down the products and improves productivity.
