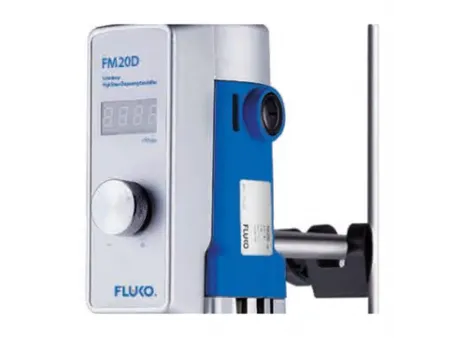

FM20D Batch High Shear Mixer
Request a Quote
Pilot scale mixer for dispersing, emulsifying and homogenizing of medium viscosity materials
This batch high shear mixer features variable speed control and delivers strong torque output. It comes with a combination of different agitators, offering multiple mixing functions. This makes it ideal for dispersing, emulsifying, homogenizing, and mixing medium viscosity materials and solids-containing liquids.
Key Specifications
- Motor power (W) 500
- Power supply 220V, 50Hz
- Mixing capacity (H₂O) (ml) 150-3000
- Max. viscosity (cP) 5000
Specifications
| Model | FM20D |
| Motor power (W) | 500W |
| Power supply | 220V, 50Hz |
| Mixing capacity (H₂O) (ml) | 150-3000 |
| Max. viscosity (cP) | 5000 |
| Speed range (rpm) | 2000-14000 |
| Speed display | Digital display |
| Speed control | Stepless |
| Standard stator | Slot |
| Medium-contact material | SS316L |
| Stirring shaft material | Copper alloy |
| Allowable ambient temperature (℃) | 5 to 40 |
| Allowable relative humidity (%) | 80 |
| Operaiton mode | Batch processing |
| Work frame/stand base | Standard |
| Dimensions (mm) | 215×310×730 |
| Weight (kg) | ≤10 |
| Packaging | Carton |
Features

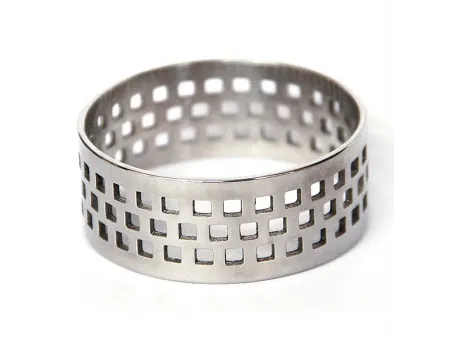

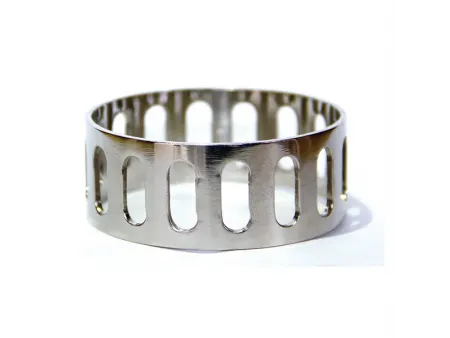

The mixer features a bearing-free structure for smoother operation. It is equipped with three sets of stators, allowing users to easily swap them according to their processing conditions and requirements to achieve optimal results.
