COG 960/B3 Crochet Machine

COG 960/B3 Crochet Machine
COG 960/B3 Crochet Machine
COG 960/B3 Crochet Machine
Request a Quote

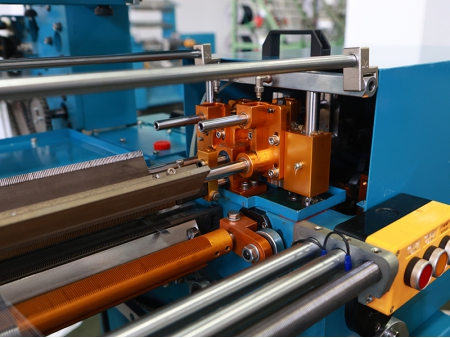

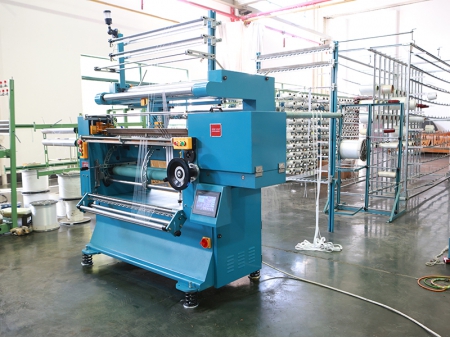

COG 960/B3 crochet machine is designed for manufacturing narrow tapes up to 20cm in width. Engineered for stability and precision, this textile machine is an ideal choice for factories seeking to optimize mass production of narrow fabrics with superior consistency.

Specifications
  • Working width: 960mm
  • Creel capacity: 260 positions
  • Yarn rod spacing: 23cm
  • Gauge: 560 needles
  • Power supply: 3-phase 380V 50Hz / 60Hz
Features
  • Extended 960mm Working Width
    Optimized for the steady production of narrow fabrics of 20cm in width
  • 260-Position Creel
    Ensures a continuous yarn supply, making it perfect for high-density and multi-yarn weaving requirements
  • Precision Tension Control
    Equipped with a slow-speed lengthening device, allowing for accurate tension adjustments, resulting in exceptional flatness and structural uniformity in the finished product
  • Motor and VFD (Standard Configuration)
    Allows operator to adjust speeds seamlessly to match specific craft requirements
