Side Load Lifting Point

Request a Quote

Website: http://loadlifting-en.com/1-7-side-load-lifting-point-03-22t.html

BLT081 Rigging Hardware

Working Load Limit 0.3-22.5t

Rotation 360 degree

Pivot 180 degree

Material: High-strength chromium-molybdenum alloy steel
Attachment type: Screw-in
Rotation angle: 360°
Pivot angle: 180°
Surface treatment (rings): Powder-coated
Surface treatment (bolts): Black oxide finish
Working temperature range: -40℃~ 200℃
Thread size: M8–M64
Bolt grade: 10.9
Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
Rotates under load: No
Holding spring for suspension link: Yes
Working load limit: 0.3T-22.5T
Safety factor: 4:1
Standard: DIN EN 1677-1
Explosion protection: No
RAL color No.: Customizable
Identification label available: No

Applications

Industrial plants: Suitable for lifting and transporting molds, as well as installing various industrial production equipment
Transportation: Commonly used for lifting and securing industrial equipment and transporting containers

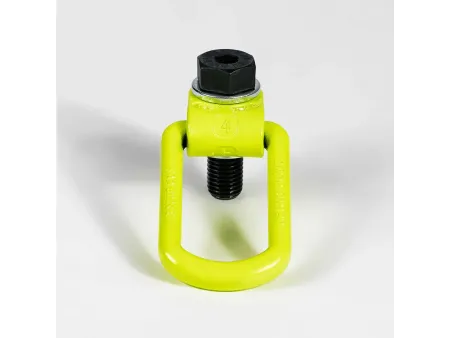

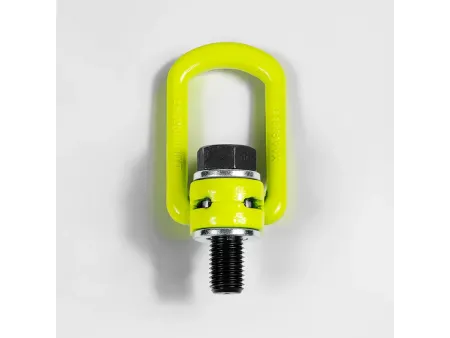

The side load lifting point is designed to handle side load lifting operations with precision and safety. With a working load limit of 0.3 to 22.5t, it offers full 360° rotation and 180° pivoting to adapt seamlessly to complex lifting scenarios. This horizontal lifting point is engineered for versatile applications in oil and gas, industrial manufacturing, and transportation sectors.

Inspection and Standards

Passed 6g plug gauge inspection for compatibility with precision-threaded holes
Endured 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing
Magnetic particle inspection ensures crack-free integrity
Complies with EN1677-1 production standards, with certified test reports available upon request

Key Features

Designed for side load lifting applications, the ring features an internal positioning snap ring mechanism and a bushing on the bolt section to securely lock the ring in place, preventing unnecessary movement or collisions during non-operational periods.
Equipped with a dual hexagon design on the bolt top for easy and efficient installation
Capable of 360° rotation and 180° pivoting, enabling versatility for complex lifting tasks
Available in M8-M64, with a split design for the ring and bolt to accommodate custom thread sizes (e.g., lengthened, shortened, coarse, fine, metric, or UNC threads)
Working load limit (WLL) of 0.3-22.5t, with a 4:1 safety factor. All products undergo 100% non-destructive testing.
Each load-bearing component is stamped with a production batch number for traceability.
Forged from high-strength chromium-molybdenum alloy steel, heat-treated (quenched and tempered) for superior durability and toughness
Epoxy resin electrostatic powder coating for the ring and black oxide treatment for the bolt ensures resistance against wear and corrosion

Specifications

(Available in Metric Thread and UNC Thread)

Item No.	Working Load Limit (t)	Thread M	Dimensions (mm)											Torque (Nm)	Weight (kg)
Item No.	Working Load Limit (t)	Thread M	E	A	B	C	D	F	G	L	N	s	SW	Torque (Nm)	Weight (kg)
BLT081-M8	0.30	8×1.25	11	34	37	42	14.0	98.5	57	42.5	31.0	6	13	10-40	0.5
BLT081-M10	0.63	10×1.50	16	34	37	44	14.0	98.5	57	40.5	31.0	6	16	10-40	0.5
BLT081-M12	1.00	12×1.75	18	34	37	45	14.0	98.5	57	39.5	31.0	8	18	15-40	0.5
BLT081-M14	1.20	14×2.00	21	34	37	48	14.0	98.5	57	36.5	31.0	10	24	30-100	0.5
BLT081-M16	1.50	16×2.00	24	34	37	48	14.0	98.5	57	36.5	31.0	10	24	45-130	0.5
BLT081-M18	2.00	18×2.50	26	50	54	58	16.5	143.0	82	68.5	45.0	12	30	100-170	1.5
BLT081-M20	2.50	20×2.50	30	50	54	58	16.5	143.0	82	68.5	45.0	12	30	100-170	1.5
BLT081-M22	3.00	22×2.50	30	50	54	61	16.5	143.0	82	65.5	45.0	14	36	100-170	1.5
BLT081-M24	4.00	24×3.00	36	50	54	61	16.5	143.0	82	65.5	45.0	14	36	190-280	1.5
BLT081-M27	4.00	27×3.00	38	60	65	82	22.0	170.0	99	66.0	59.0	17	46	250-500	3.0
BLT081-M30	5.00	30×3.50	48	60	65	82	22.0	170.0	99	66.0	59.0	17	46	270-600	3.5
BLT081-M33	6.00	33×3.50	54	60	65	85	22.0	170.0	99	63.0	59.5	22	55	270-600	3.5
BLT081-M36S	7.00	36×4.00	54	60	65	85	22.0	170.0	99	63.0	59.5	22	55	270-600	3.5
BLT081-M36B	8.00	36×4.00	62	77	85	104	27.0	226.5	123	95.5	69.0	22	55	270-600	6.0
BLT081-M39	8.00	39×4.00	62	77	85	104	27.0	226.5	123	95.5	69.0	22	55	350-800	6.0
BLT081-M42S	10.00	42×4.50	72	77	85	106	27.0	226.5	123	93.5	69.0	22	65	350-800	6.5
BLT081-M42B	15.00	42×4.50	63	95	104	117	36.0	257.5	158	104.5	98.0	22	65	350-800	11.0
BLT081-M45	15.00	45×4.50	63	95	104	117	36.0	257.5	158	104.5	98.0	22	65	350-800	11.0
BLT081-M48	20.00	48×5.00	72	95	104	120	36.0	257.5	158	101.5	98.0	27	75	350-800	12.0
BLT081-M52	20.00	52×5.00	72	95	104	117	36.0	257.5	158	104.5	98.0	27	75	350-900	12.0
BLT081-M56	22.00	56×5.50	84	95	104	117	36.0	257.5	158	104.5	98.0	27	85	350-900	15.0
BLT081-M64	22.50	64×6.00	100	114	104	138	36.0	266.0	158	92.0	109.0	32	95	500-1000	16.3

* Safety factor of 4:1;
* The length and thread of bolts can be made according to requirements;
* 'B' represents the large structure, 'S' represents the small structure;

Working Load Applications

Lifting Method
Number of Sling Legs		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Item No.	Thread M	Working Load Limit (t)
BLT081-M8	8	0.30	0.60	0.30	0.60	0.42	0.30	0.30	0.63	0.45	0.30
BLT081-M10	10	0.63	1.26	0.63	1.26	0.88	0.63	0.63	1.32	0.95	0.63
BLT081-M12	12	1.00	2.00	1.00	2.00	1.40	1.00	1.00	2.10	1.50	1.00
BLT081-M14	14	1.20	2.40	1.20	2.40	1.70	1.20	1.20	2.50	1.80	1.20
BLT081-M16	16	1.50	3.00	1.50	3.00	2.10	1.50	1.50	3.10	2.20	1.50
BLT081-M18	18	2.00	4.00	2.00	4.00	2.80	2.00	2.00	4.20	3.00	2.00
BLT081-M20	20	2.50	5.00	2.50	5.00	3.50	2.50	2.50	5.20	3.70	2.50
BLT081-M22	22	3.00	6.00	3.00	6.00	4.20	3.00	3.00	6.30	4.50	3.00
BLT081-M24	24	4.00	8.00	4.00	8.00	5.60	4.00	4.00	8.40	6.00	4.00
BLT081-M27	27	4.00	8.00	4.00	8.00	5.60	4.00	4.00	8.40	6.00	4.00
BLT081-M30	30	5.00	10.00	5.00	10.00	7.00	5.00	5.00	10.50	7.50	5.00
BLT081-M33	33	6.00	12.00	6.00	12.00	8.50	6.00	6.00	12.70	9.00	6.00
BLT081-M36S	36	7.00	14.00	7.00	14.00	9.80	7.00	7.00	14.70	10.50	7.00
BLT081-M36B	36	8.00	16.00	8.00	16.00	11.20	8.00	8.00	16.80	12.00	8.00
BLT081-M39	39	8.00	16.00	8.00	16.00	11.20	8.00	8.00	16.80	12.00	8.00
BLT081-M42S	42	10.00	20.00	10.00	20.00	14.00	10.00	10.00	21.00	15.00	10.00
BLT081-M42B	42	15.00	30.00	15.00	30.00	21.00	15.00	15.00	31.50	22.50	15.00
BLT081-M45	45	15.00	30.00	15.00	30.00	21.00	15.00	15.00	31.50	22.50	15.00
BLT081-M48	48	20.00	40.00	20.00	40.00	28.00	20.00	20.00	42.00	30.00	20.00
BLT081-M52	52	20.00	40.00	20.00	40.00	28.00	20.00	20.00	42.00	30.00	20.00
BLT081-M56	56	22.00	44.00	22.00	44.00	30.80	22.00	22.00	46.20	33.00	22.00
BLT081-M64	64	22.50	45.00	22.50	45.00	31.50	22.50	22.50	47.25	33.75	22.50

Item No.	Working Load Limit (t)	Thread M		Dimensions (mm)											Torque (Nm)	Weight (kg)
Item No.	Working Load Limit (t)	M	TPI	E	A	B	C	D	F	G	L	N	S	SW	Torque (Nm)	Weight (kg)
BLT081-3/8	0.63	3/8	16.0	16	34	37	43	14.0	98.5	57	41.5	31.0	6	16	10-40	0.5
BLT081-1/2	1.00	1/2	13.0	21	34	37	45	14.0	98.5	57	39.5	31.0	8	18	15-40	0.5
BLT081-5/8	1.50	5/8	11.0	24	34	37	48	14.0	98.5	57	36.5	31.0	10	24	45-130	0.5
BLT081-3/4	2.50	3/4	10.0	26	50	54	58	16.5	143.0	82	68.5	45.0	12	30	45-130	1.5
BLT081-7/8	2.50	7/8	9.0	30	50	54	61	16.5	143.0	82	65.5	45.0	14	36	100-170	1.5
BLT081-1	4.00	1	8.0	36	50	54	61	16.5	143.0	82	65.5	45.0	14	36	190-280	1.5
BLT081-1-1/4	5.00	1-1/4	7.0	48	60	65	80	22.0	174.0	99	72.0	59.5	17	46	270-600	3.5
BLT081-1-1/2	8.00	1-1/2	6.0	62	77	85	104	27.0	226.5	123	95.5	69.0	22	55	270-600	6.0
BLT081-1-3/4	15.00	1-3/4	5.0	63	95	104	116	36.0	257.5	158	105.5	98.0	22	65	350-800	11.0
BLT081-2	20.00	2	4.5	72	95	104	112	36.0	257.5	158	109.5	98.0	27	75	350-800	12.0

* Safety factor of 4:1;
* The length and thread of bolts can be made according to requirements;

Working Load Applications

Lifting Method
Number of Sling Legs		1	2	1	2	2		2	3-4		3-4
Lifting Angle		0°	0°	90°	90°	0-45°	45-60°	Asymmetry	0-45°	45-60°	Asymmetry
Item No.	Thread M	Working Load Limit (t)
BLT081-3/8	3/8	0.63	1.26	0.63	1.26	0.88	0.63	0.63	1.32	0.95	0.63
BLT081-1/2	1/2	1.00	2.00	1.00	2.00	1.40	1.00	1.00	2.10	1.50	1.00
BLT081-5/8	5/8	1.50	3.00	1.50	3.00	2.10	1.50	1.50	3.10	2.20	1.50
BLT081-3/4	3/4	2.50	5.00	2.50	5.00	3.50	2.50	2.50	5.20	3.70	2.50
BLT081-7/8	7/8	2.50	5.00	2.50	5.00	3.50	2.50	2.50	5.20	3.70	2.50
BLT081-1	1	4.00	8.00	4.00	8.00	5.60	4.00	4.00	8.40	6.00	4.00
BLT081-1-1/4	1-1/4	5.00	10.00	5.00	10.00	7.00	5.00	5.00	10.50	7.50	5.00
BLT081-1-1/2	1-1/2	8.00	16.00	8.00	16.00	11.20	8.00	8.00	16.80	12.00	8.00
BLT081-1-3/4	1-3/4	15.00	30.00	15.00	30.00	21.00	15.00	15.00	31.50	22.50	15.00
BLT081-2	2	20.00	40.00	20.00	40.00	28.00	20.00	20.00	42.00	30.00	20.00
