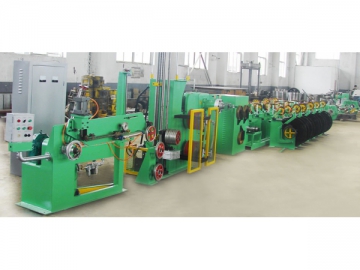

Bead Winding and Extrusion Line
Request a Quote
View All: http://huahanmachine.com
Specifications
| Nominal Bead Range | 8" -21" | 12" -25" | 25" -51" | |
| Strands of Bead Wire | ≤ 10 | ≤ 15 | ≤ 15 | |
| Ribbon Width | mm | ≤ 10 | ≤ 20 | ≤ 20 |
| Line Speed | m/min | 0~148 | 0~148 | 0~148 |
| Winder Rotating Speed | r/min | 0~90 | 0~90 | 0~70 |
| Preheating Temperature | ℃ | 40~120 | 40~120 | 40~120 |
| Number of Let-Off Stand | set | 1~8 | 10 | 14 |
| Bead Drum Diameter | mm | 760 | 760 | 760 |
| Overall Dimensions ( L × W × H ) | mm | 14,000 × 3,200 × 3,100 | 15,000 × 3,200 × 3,100 | 15,000 × 3,200 × 3,100 |
| Gross Weight | t | 9 | 9.5 | 11 |
