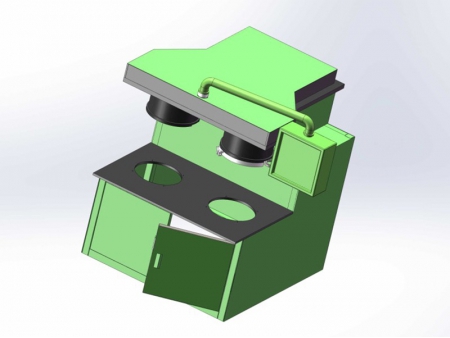

Automotive Alternator Stator Slinky Winding Machine

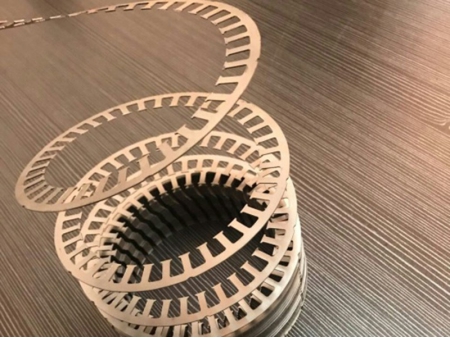

Automotive alternator stator slinky winding machine is specially designed for spiral winding notched electric silicon steel strip into stator cores for automotive alternators and electric wheel hub motors, etc.
Main Features
- Servo motor driving, stable and reliable, 24 hours working
- PLC control, digital input, simple and convenient
- Equipped with mechanical and electric safety protection measures
- Twin winding stations, working simultaneously, high efficiency
Technical Data
- Applicable stator core diameterBased on winding mould (customized)
- Winding speed0-200rpm
- Productivity2-3pcs/min
- Servo motor power1.5kW
- Compressed air0.6-0.8MPa
- Machine dimensionAbout 920 x 860 x 1580mm
- Machine weightAbout 480kg
