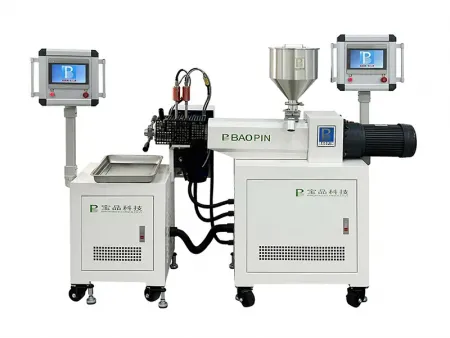

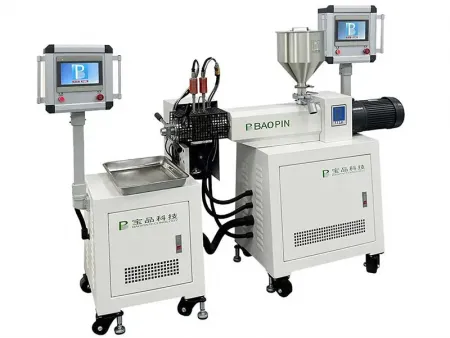

BP-8186-B (PLC control) FPV Filter Tester
Request a Quote
Laboratory filter test machines for determining the filter pressure value (FPV) during the production of masterbatches, compounds, polymers or recycled polymers
- PLC control
- Screw diameter: 20mm (others on request)
- L/D ratio: 28:1
The FPV filter tester is designed for the mixing and processing of thermoplastic plastic materials, including plastification, coloring, and filling modification. It provides uniform dispersion and is highly versatile. Equipped with a melt pump and high-precision melt temperature and pressure sensors, it complies with EN standards and integrates a PLC-based measurement and analysis system. This allows for precise evaluation of the dispersion properties of pigments and fillers in plastics.
Applications
The FPV filter tester is widely used in:
- Plastic modification
- Masterbatch production
- Pigment and filler research
- Plastic recycling and regeneration
Technical Data
- Screw diameter
20mm (others on request) - L/D ratio
28:1 - Screw speed
0-95rpm, frequency conversion speed regulation - Electric Control System
PLC programmable color touch screen, man-machine interface operation system, can dynamically display and monitor the extrusion process, including temperature control, driving, speed, pressure, interlocking, and intercontrol functions. - Safety Protection
The melt pressure is interlocked with the host for overpressure alarm protection; the melt temperature is interlocked with the host for low temperature start-up protection. - Power supply
AC380V, 50Hz, 3-phase 5-wire - Dimensions (W×D×H)
1425×550×940mm - Weight
approx. 175kg
