The three-guide post high-speed C-frame press delivers a 25-ton capacity with a stroke range of 20–40 mm and speeds of 200–700 strokes per minute. It features a 600×330 mm worktable, 320×220 mm slide, and a 100×400 mm scrap outlet. Compact yet powerful, this metal stamping press ensures stable and accurate operation for continuous high-speed stamping of rotors, stators, lead frames, hardware parts, and can lids.

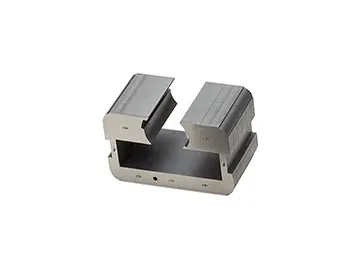

Samples of Stamped Parts
- Rotor and stator lamination stamping
- Metal lead frame stamping
- IC chip stamping
- Rotor and stator lamination stamping
- Metal hardware stamping
- Can Lid Stamping

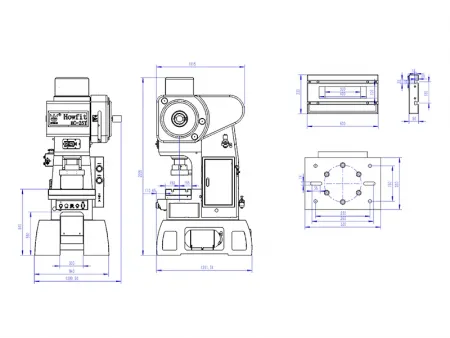

Outline Dimensions
Technical Specifications
| Press capacity (kN) | 650 | ||
| Stroke (mm) | 20 | 30 | 40 |
| Stroke speed (spm) | 200-700 | 200-600 | 200-500 |
| Shut height (mm) | 185-215 | 180-210 | 175-205 |
| Slide adjustment (mm) | 30 | ||
| Worktable size (bolster) (mm) | 600×330×80 | ||
| Slide area (mm) | 320×220 | ||
| Scrap hole size (mm) | 100×400 | ||
| Main motor (kW) | 4×4P | ||
| Machine weight (ton) | 3.6 | ||
