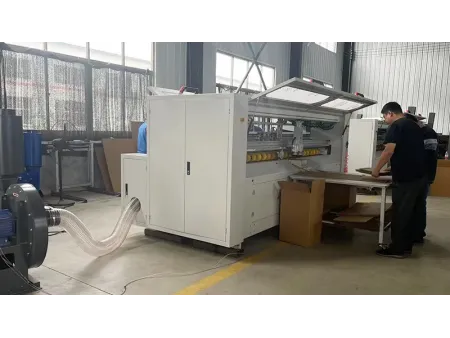

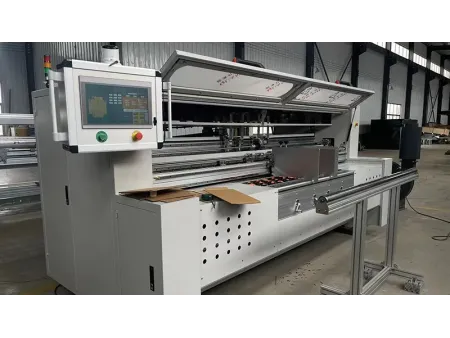

Automatic Cardboard Box Making Machine
Request a Quote
Corrugated packaging machines for the production of corrugated boxes
Structure
Feeder
Cutting Section
Gluing Section
Automatic Slotting and Creasing
Servo-Driven Slitting
Longitudinal Cutting and Creasing
Features
- Order changeover can be completed in 1-40 seconds, ideal for multi-batch production.
- 2.5 m effective sheet width with no limit on board length, supporting a wide range of carton sizes.
- Offers nearly 100 box styles without the need for die-cutting, saving time and labor.
- Slotting, slitting, edge forming, and punching are completed in a single pass, eliminating the need for multiple processes. Unlimited slotting capability prepares slots for any box size or shape within seconds.
- Easy to operate with computer-controlled automatic adjustment; the lead-edge automatic feeder enables single-operator use.
- 5.5 kW high-power lead-edge feeder ensures stable feeding without slipping.
- Two 500 mm slotting knives adjust automatically, completing slotting and scoring in one pass with high efficiency.
- Equipped with four tungsten-steel servo-driven slitting knives from Taiwan for clean and precise carton edges.
- Four creasing wheels with pneumatic pressure adjustment allow complex carton types to be formed in one pass.
- One active rotary cross-cutting knife trims excess board without the need for an additional cutter.
- Quick-change punching module, enabling hand holes and ventilation holes to be completed in a single operation.
Technical Specifications
| Applicable cardboard | Corrugated board, 2-10mm (E, B, C, AB, BC, BE, etc.) |
| Applicable cardboard grammage | ≤1200g/m² |
| Max. paper feed size | Unlimited length, max. width 2500mm |
| Min. paper feed size | Length 650mm, width 200mm |
| Order change time | 1-40s |
| Precision | ±2mm |
| Standard box quantity | More than 50 box styles |
| Processing speed | 7-10pcs/min |
| Standard slotting knives | 2x500mm |
| Slitting blades | 4 |
| Creasing blades | 4 |
| Cut-off blades | 1 |
| Power supply | 7kW, 380V±10%, 50Hz |
| Air supply | 0.6-0.7MPa, air consumption 75L/min |
| Machine dimensions (LxWxH) | 3500x1800x2030mm |
| Total weight | Approx. 3500kg |
| Paper feeding module | 3-axis lead edge feeder |
| Portable punching function | Supported, 120x120mm |
Supported Box Types
Can the automatic cardboard box making machine width be adjusted to produce cartons of different widths on my production line?
Yes. The working width can be customized according to the carton sizes you need to produce, ensuring compatibility with various forming requirements.
The factory frequently switches between different box orders. Can automatic cardboard box making machine store enough order presets?
Yes. The equipment can store up to 999 orders, each with preset carton dimensions and forming parameters. Simply retrieve the saved order when switching, ensuring fast and efficient multi-variety production.
