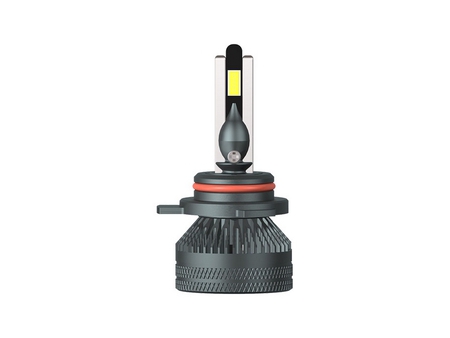

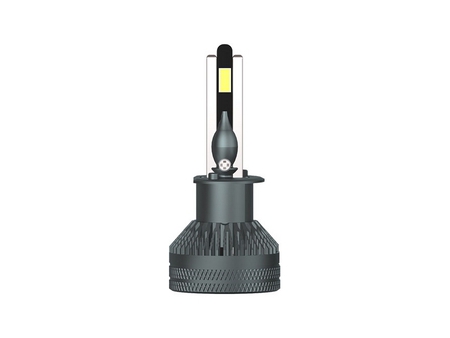

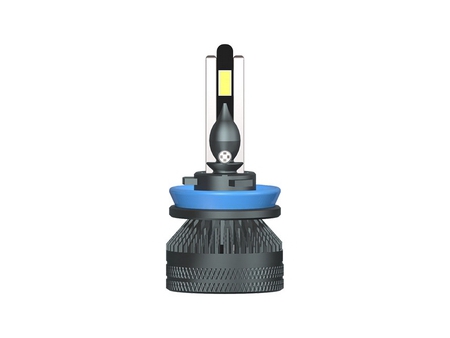

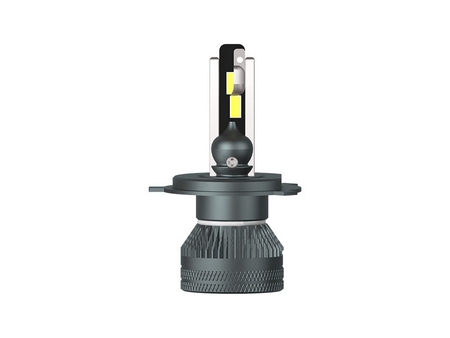

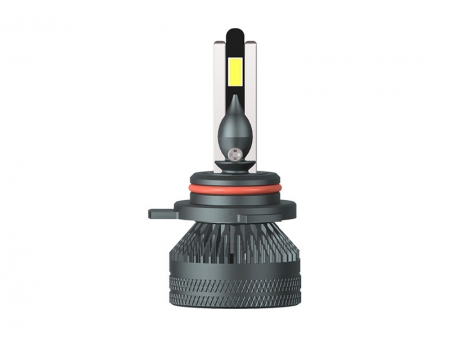

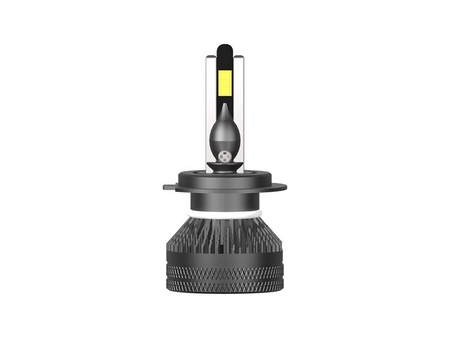

L7 Series LED Headlight Bulb
Request a Quote
Features
- The heat sink has a diameter of 32mm and a height of 28.5mm, with a power output of 55W, ensuring optimal cooling performance.
- Equipped with 3570 LED chips, dual superconducting heat pipes, and uniquely designed S-shaped cooling fins made from AL6063 material (European standard), this bulb guarantees excellent heat dissipation.
- The 1.5mm double-sided copper base plates are perfectly welded to the dual superconducting heat pipes, providing better heat transfer. The external driver and smart temperature control system further protect the LED chips, enhancing the bulb's lifespan.
- The bulb features a sleek, compact design with high power output, and includes EMC and decoding functions for compatibility. Patented design ensures enhanced protection and performance
Specification
| Series | L7 | ||||||
| Model | L7 H1 | L7 H4 | L7 H7 | L7 H11 | L7 9005 | L7 9006 | L7 9012 |
| Voltage (V) | DC9-60 | ||||||
| Power (W) | 55 | ||||||
| Luminous Flux (lm) | 4500 | ||||||
| Color temperature (K) | 6500 | ||||||
| Driver | External driver | ||||||
| Fan | Yes | ||||||
