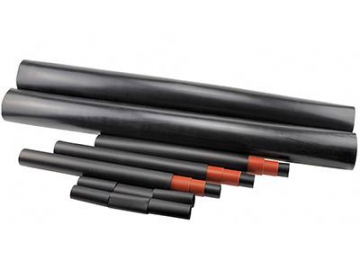

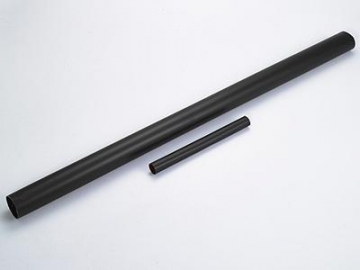

Single Core To Three Core Heat Shrink Cable Joint Up To 15kV
Request a Quote
10kV heat shrinkable intermediate joints use EPDM materials formed through an extrusion process to ensure a uniform wall thickness and flexible wall. The joints shrink quickly as soon as they are heated, and the sealing, flame resistance, insulation, and corrosion resistance are all exceptional.
This series of intermediate joints are suitable for insulation of 6KV-15KV cross-linked cables or oil filled cables. According to different internal structures, 2 kind of joints including 1-core and 3-core are available.
Type and specification
1-core heat-shrinkable intermediate joint| Type and specification | Cross sectional area of applicable cable (mm2) |
| JSY -10/1.1 | 25-50 |
| JSY -10/1.2 | 70-120 |
| JSY -10/1.3 | 150-240 |
| JSY -10/1.4 | 300-500 |
| Type and specification | Cross sectional area of applicable cable (mm2) |
| JSY -10/3.1 | 25 - 50 |
| JSY -10/3.2 | 70-120 |
| JSY -10/3.3 | 150-240 |
| JSY -10/3.4 | 300-500 |
Performance testing chart
| Item | Test condition |
| West state power frequency withstand voltage test(external) | 35kv, 1min |
| Dry power frequency withstand voltage test(inside) | 39kv, 5min |
| Impact withstand voltage test | 95kv1.2/50us 10 times |
| Partial discharge test | ≤10pc(1.73u) |
