SNS-200

Liquid filling and stoppering machine for small-volume vials

180 to 200 Vials Per Minute
2 to 20 ml Filling Range

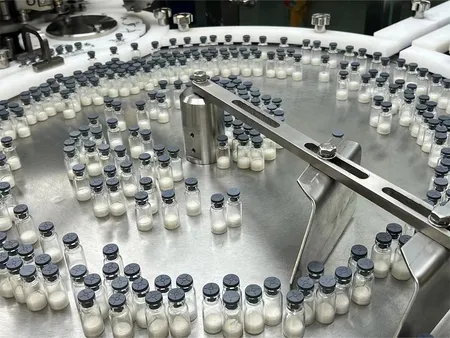

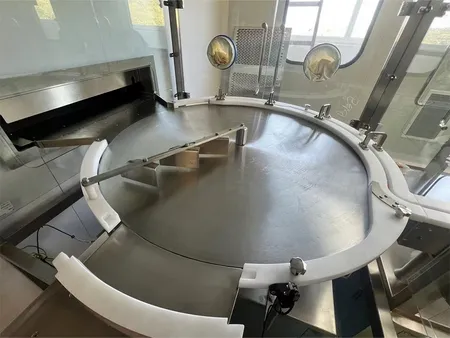

The liquid vial filling machine is designed for filling and stoppering 2-20ml glass vials. Featuring a rotary disc positioning system for filling and automatic stoppering, this liquid filling machine offers stable and reliable performance with a filling accuracy exceeding 99%. It is ideal for small-volume liquid filling applications, such as essential oils and injectables, and is widely used in the food, pharmaceutical, chemical, and research industries.

Key Features

Equipped with a Japanese-brand closed cam indexer, ensuring high precision, reliable operation, and long service life with minimal maintenance
Features a high-precision peristaltic pump that achieves filling accuracy exceeding 99%
Able to operate as a standalone unit or be integrated with bottle washing machines and dryers to form a complete production line

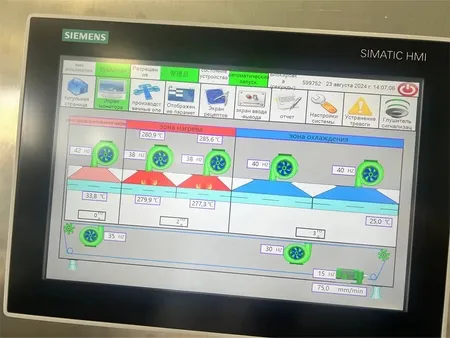

Intuitive operation through a user-friendly HMI with PLC control, ensuring precise volume adjustments and easy handling.
Adjustable frequency-controlled production speed with automatic counting functionality
Includes automatic stop function and no-bottle-no-filling capability to prevent wastage

Specifications

Production Capacity	180-200 vials/min (based on 10ml vial)
Filling Range	2-20ml (need to change pump)
Filling Heads	12 heads (peristaltic pump)
Filling Accuracy	±1% (depending on material)
Qualified Stoppering Rate	98%
Power Supply	220V 50Hz
Total Power	2.0kW
Machine Dimensions (L×W×H)	3000×1800×1800mm
Machine Weight	1000kg
