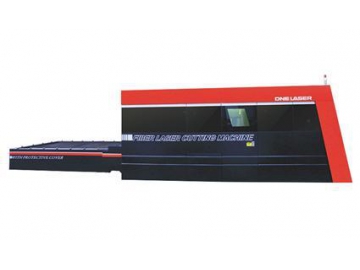

1500W FCCBDX Medium Power Fiber Laser Cutting System Metal Cutting Machine
Application

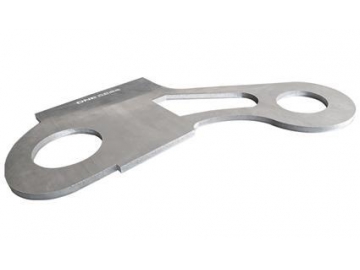

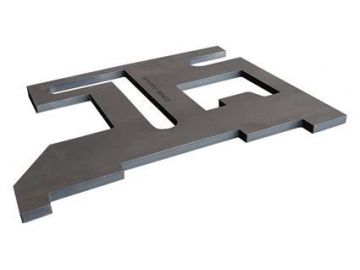

The 1500W FCCBDX medium power fiber laser cutting machine is suitable for quick cutting applications for stainless steel, carbon steel, galvanized sheets, electrolytic sheets, brass sheets, aluminum sheets, manganese steel, various alloy sheets, uncommon metals and other materials.
| Model | DNE-FCCBDX-1500W |
| Laser generator | Imported original fiber laser |
| Cutting range | 1500mm*3000mm, 1500*4000mm (optional) |
| Cutting speed | Depending on the material and thickness |
| Repositioning accuracy | ±0.02mm |
| Total consumed power | < 15KW |
| Power demand | 380V/50Hz/60Hz/60A |
| Dimension of occupied area | 9000*5000MM(Using cutting area of 1500*3000mm as an example) |
Features of the 1500W FCCBDX medium power fiber laser cutting machine
1. The 1500W FCCX medium power fiber laser cutting machine utilizes an imported fiber laser generator that is known for its high quality beam quality and stable performance, all while requiring no maintenance.
2. The fiber laser generator has a high electro-optical conversion efficiency of 30%, which significantly reduces power consumption and operation costs.

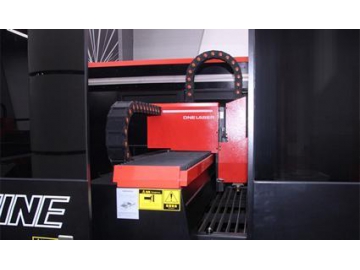

3. The laser cutting machine is equipped with a high strength machine bed that has undergone a standard annealing treatment in a high temperature electric furnace, in order to ensure long term machine stability and precision.
4. The laser operates without the need for any special gasses, and achieves sheet cutting using air.
Shenzhen DNE is a listed Sino-Swiss Joint Venture by DNE Laser and Bystronic Group, which mainly work on the innovation of laser cutting technology. DNE offers 1500W FCCBDX medium power fiber laser cutting system and other metal cutting machines. Bystronic develops and sells metal sheet processing system, Bystronic Group was founded in 1964, headquarters are in Niederönz, Switzerland. Bystronic has been committed to laser cutting research and development since 1981, which specializes in manufacturing laser cutting machines.
