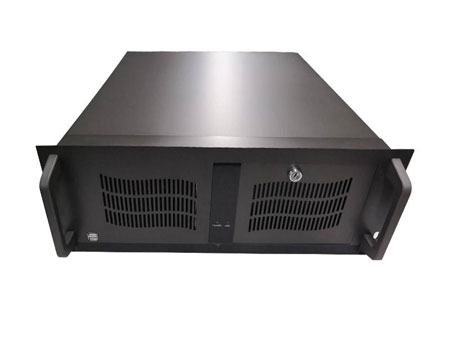

HN-IPC480S Rackmount Chassis
Request a Quote
Features
- The chassis supports an ATX motherboard or PICMG passive backplane with 15 slots
- Shock-resistant disk driver bay supports 2 external 5.25" drive bays and 2 external 3.5 inch discs
- Unique design can helps to protect against damage caused by shock or vibration
- Front accessable air-filter makes for easy maintenance.
- Lockable front door prevents unauthorized access
- Flexible mechanical design supports a redundant ATX power system
- Dimensions: 482.6*177*503mm (include handle)
Technical Parameters
| Model | HN-Q01-A | HN-Q02 | HN-Q03 | |||
| Board index | CPU | LGA775 E7400/E5300 | LGA1155 i7-2600 /i5-2400 /i3-2120 | Intel® 6/7/8 core i7/i5/i3/ in LGA1151 Package (maximum energy consumption: 65W) | ||
| Chipset | Intel Q35 ICH9R | Intel H61 | Intel® B365 | |||
| Momery | Dual Channei DDR2 667/800Mhz4*240-pin DIMM slot, up to 8G | Dual Channei DDR2 1066/1333Mhz4*240-pin DIMM slot, up to 16G/8G per DIMM | 4*SDIMM, support DDR4 1333-2400, up to 32GB | |||
| Storage | 6*3.5, SATA2,300MB/s | 4*3.5, SATA2,300MB/s | 5*SATA 1*M.2 | |||
| Extension | 5*PCI 1*PCIe*16 1*PCIe*1 | 4*PCI 1*PCIe*16 1*PCIe*1 | 1*PCIE_16X 2*PCIEX4_1 4*PCI | |||
| Network port | 2*10/100/1000Mbit/s(RJ45) | 2*RJ-45 1000M | ||||
| System supported | Win7, Win8.1, Win10, Linux | |||||
| I/O Port | USB | 4*rear, expandable to 12 | 4*rear, expandable to 10 | 6*rear, expandable to 8 | ||
| VGA | 1*VGA | |||||
| DVI-D | ||||||
| Serial | 4(1*RS-232/422/485 and 3*RS-232) | 6(1*RS-232/422/485 and 5*RS-232) | 2(1*RS-232/422/485 and 3*RS-232) | |||
| DVI-D | - | 1 | - | |||
| LTP | 1 | 1(expandable) | 1(expandable) | |||
| PS/2 | 2 (1*keyboard and 1*mouse) | |||||
| Audio | 3 (Line-in,Line-out,Mic-in) | |||||
| Environment | ||||||
| Operating temperature | 0~60℃ | |||||
| Humidity | 5%~80% (non-condensing) | |||||
| Storaging temperature | -40℃~80℃ | |||||
| Weight | 18KG | |||||
