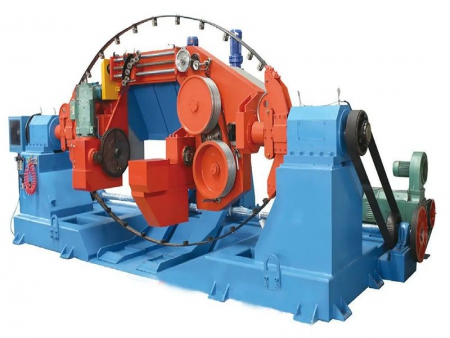

Double Twist Cabler / Strander, 1250-1600mm Spool
Request a Quote
Effect after strandingThe double twist cabler is suitable for stranding copper wire, aluminum wire and insulation core wire with large cross-sectional area. It has pay-off bobbin with diameter 1250mm and 1600mm.
Features- Twist direction: S/Z
- Electronic control:PLC + HMI
- Take-up reel lock: Pneumatic
- Pitch adjustment PLC input and adjust automatically
- Up and down bobbin: Electro hydraulic
- Brake: Pneumatic brake
| Model | 1250 | 1600 |
| Take-up reel dimension | 1250mm | 1600mm |
| Stranding cross-sectional area () | 95 | 185 |
| Stranded diameter (mm) | Max 12mm | Max 18mm |
| Inlet copper wire diameter (mm) | 1.0 – 3.2mm | 1.0 – 3.2mm |
| Insulation cable inlet diameter (mm) | 2.0 – 4.0mm | 2 – 6.0mm |
| Line speed (m/min) | Max 150m/min | Max 150m/min |
| Pitch (mm) | 35 – 350mm | 35 – 350mm |
| Rotating speed (rpm) | Max 800rpm | Max 500 rpm |
| Reel bearing weight(kg) | 2500kg | 5000kg |
| Main motor power (kw) | 45KW | 55KW |
| Capstan motor (kw) | 30KW servo | 55KW servo |
| Capstan wheel diameter (mm) | 500mm | 700mm |
| Take-up motor (kw) | 7.5KW servo | 7.5 KW servo |
| Traverse motor (kw) | 0.75kw | 1.0kw |
