Silver Conductive Aluminum Foil Tape, MZ-9745RAL

Silver Conductive Aluminum Foil Tape, MZ-9745RAL
Silver Conductive Aluminum Foil Tape, MZ-9745RAL
Silver Conductive Aluminum Foil Tape, MZ-9745RAL
Silver Conductive Aluminum Foil Tape, MZ-9745RAL
Silver Conductive Aluminum Foil Tape, MZ-9745RAL
Request a Quote

Thermally conductive tape with conductive hot melt adhesive

MZ-9745RAL silver conductive aluminum foil tape applies conductive polymer hot melt adhesive, offering good adhesion and conductivity under preheating, long-term stability is granted as well.

1010mm*50mm/PCS, packaging dimensions L1100mm*W120mm*T120mm.

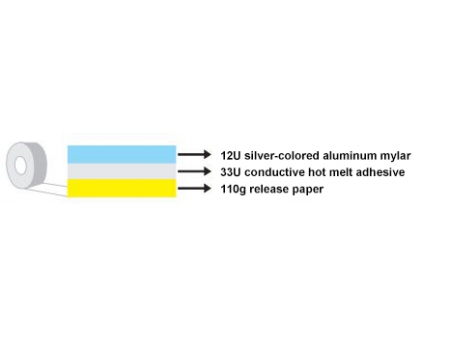

Product Structure

12U silver-colored aluminum mylar
33U conductive hot melt adhesive
110g release paper

Applications

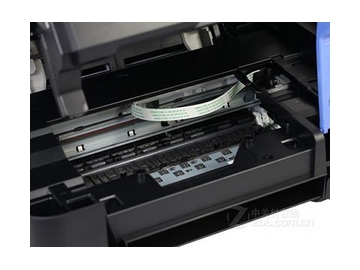

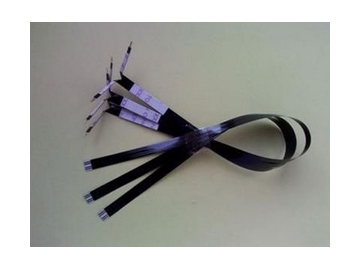

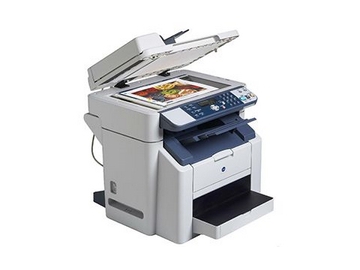

EMI shielding and characteristic resistivity controlling of FFCs and high-frequency cables in TV set, car, printer, etc.

Technical Parameter
Property Unit Value Testing method
Substrate thickness mm 0.012±0.003 GB/T 7125-1999
Adhesive layer thickness mm 0.033±0.005 GB/T 7125-1999
Total thickness mm 0.045±0.01 GB/T 7125-1999
Adhesion g/25mm ≥1000 GB/T 2792-1998
Resistance Ω ≤0.05
Adhesive melting point 100-110
Adhering temperature 120-140 --
Color -- Light aluminum color Visual Test
Tensile strength MD Mpa ≥170 GB/T 1040.3
TD Mpa ≥170 GB/T 1040.3
Elongation at break MD Mpa ≤200 GB/T 1040.3
TD Mpa ≤200 GB/T 1040.3
