Flexo Printing Machine, ZBS-320G (3/4/5/6 Colors)
Request a Quote
- Printing speed 55m/min
- Printing color 3-6 colors
- Max. width of paper 320mm
- Max .printing width 310mm
Features
- This ZBS-320G flexo printing machine gets each printing unit mounted with printing plate that can be adjusted within 360 degree.
- It uses the ceramic anilox cylinder for ink transfer.
- There are totally three rotary die-cutting stations, namely the first and second stations applicable for double side die cutting and the third die-cutting station for sheeting or slitting printed materials.
- In the standard configuration of the flexo printing machine, the web-guiding system under the control of computer is installed in the front of printing unit, keeping the material in the right position.
- Users can select the optional conveyer system, which can work with the third die cutting station to deliver the printed products orderly
- The automatic magnetic powder tension controller is adopted to control the unwinding and rewinding units. Moreover, there is a double rewinding unit for selection as required.
- Optional static image monitoring device is capable of inspecting the image quality at high speed printing.
- The ink rollers can be separated from the printing roller automatically when the machine stops. Yet they can keep rotating at low speed to prevent the ink from drying.
- Our product utilizes the imported inverter and advanced motor with continuously variable frequency speed controller.
- The flexo printing machine is easy to operate. It can finish material feeding, printing, varnishing, drying, laminating, die cutting, rewinding and sheeting at one stroke.
Technical Specifications
| Model | ZBS-320G | ZBS-320G | ZBS-320G | ZBS-320G |
| Printing speed | 55m/min. | 55m/min. | 55m/min. | 55m/min. |
| Printing color | 3 colors | 4colours | 5 colors | 6 colors |
| Max. width of paper | 320mm | 320mm | 320mm | 320mm |
| Max .printing width | 310mm | 310mm | 310mm | 310mm |
| Max. unwinding/rewinding diameter | 650mm | 650mm | 650mm | 650mm |
| Printing length | 175-355mm | 175-355mm | 175-355mm | 175-355mm |
| Thickness of flexo plate | 1.7mm or 1.14mm | 1.7mm or 1.14mm | 1.7mm or 1.14mm | 1.7mm or 1.14mm |
| Precision of chromatography | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
| Dimensions | 2.6m×1.2m×2.1m | 2.6m×1.2m×2.3m | 2.6m×1.2m×2.6m | 2.6m×1.2m×3.1m |
| Machine weight | About 2450kg | About 2600kg | About 2900kg | About 2900kg |
Shipping Information
| Packing | Export standard wooden case |
| Model No. | ZBS-320G |
| Standard | 3-6 colors |
| Productivity | 15 sets per month |
| Unit Price/Payment | USD16000-USD65000 |
| H.S. Code | 84431600 |
| Trademark | WEIGANG |
| Origin | China |
| Min. Order | 1 set |
| Transportation | Land, sea, air |
Options
- Sheeter conveyer
- UV dryer
- Separate unwinder shelf (diameter up to 900mm)
- Corona treater
- Cold stamping unit
- Video inspecting system
- Safe cover for printing unit
- Slitting unit
Details

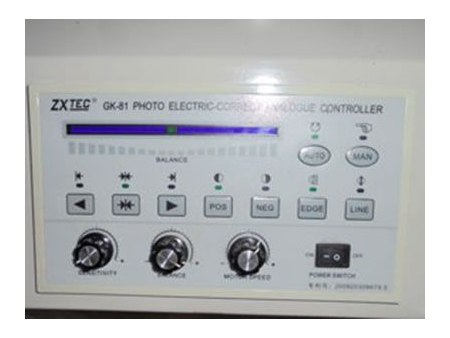

- Web guiding system

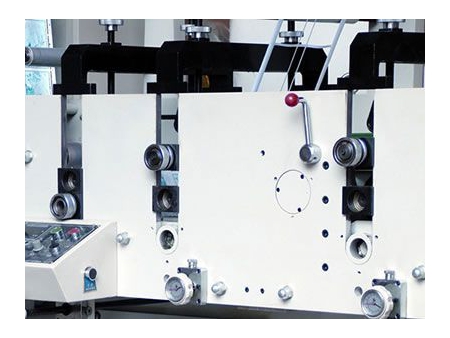

- Three die cutting stations
- Separate unwinder shelf with diameter of 900mm
- Die cutting roller
- Sheeter and conveyer belt
- Slitter unit
