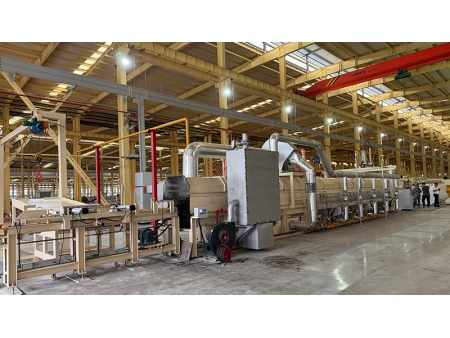

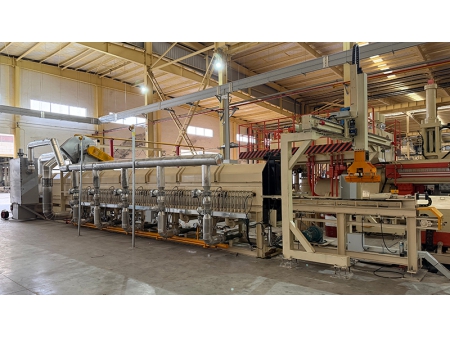

Aluminum Billet Pre-heat Furnace for Extrusion - Single Billet
Request a Quote
-->
Technical parameters:
Pre-heat furnace for aluminum extrusion press 600-1450T
| Billet diameter | Heating time | Heating speed | Energy consumption | Power |
| Φ90-Φ152mm | ≦30min | 90 S/billet | ≦35m³/T.Al | 30kw |
Pre-heat furnace for aluminum extrusion press 1650-2000T
| Billet diameter | Heating time | Heating speed | Energy consumption | Power |
| Φ178-Φ203mm | ≦30min | 120S/ billet | ≦30m³/T.Al | 50kw |
Pre-heat furnace for aluminum extrusion press 2500-3600T
| Billet diameter | Heating time | Heating speed | Energy consumption | Power |
| Φ228-Φ320mm | ≦30min | 120S/ billet | ≦25m³/T.Al | 65kw |
Pre-heat furnace for aluminum extrusion press 4000-6000T
| Billet diameter | Heating time | Heating speed | Energy consumption | Power |
| Φ330-Φ406mm | ≦30min | 150S/ billet | ≦25m³/T.Al | 110kw |
Recommendations
- single billet heating furnace hot shear
- single billet heating furnace hot saw
- short billet heating furnace
- cold saw single billet heating furnace
Construction
As the aluminum extrusion presses used by customers feature different production capacity, the diameter of the aluminum billets might also differ, the aluminum billets with different thickness, however, vary in heating time. For the thicker aluminum billets, for example, we will change the heating zones to reduce its heating time. We are able to customize various aluminum heating furnaces according to various production capacity of the aluminum extrusion press.
