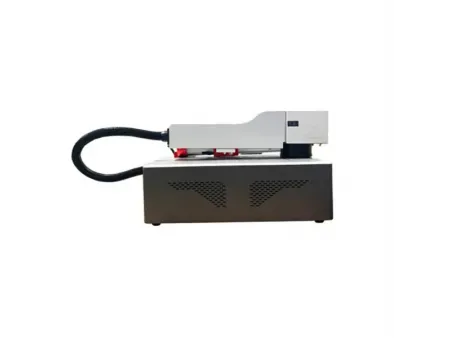

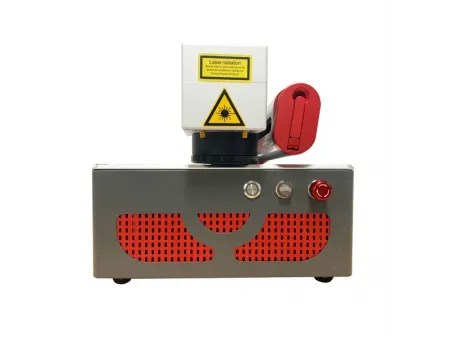

22KG Mini Portable Laser Engraving Machine
Request a Quote
- Laser power: 20 / 30W
- Working area: 110*110 / 150*150 / 200*200mm
- Repeat precision:±0.01mm
- Working speed: ≤8000mm/s
Mini portable fiber laser marking machine, is with powerful function, good performance, small and portable.Widely used to mark text, pattern, bar code and other graphics in metal, electronics,plastic and other materials.
Technical Data
| Machine name | Mini Portable fiber laser marking machine |
| Machine model | LS-YLP-20L/30L |
| Laser source | Raycus/ JPT/ MAX/Hans |
| Laser power | 20W/30W |
| Working area | 110*110mm/150*150mm/200*200mm |
| Working speed | ≤8000mm/s |
| Wavelength | 1064nm |
| Min line width | 0.03mm |
| Min character | 0.1mm |
| Repeat precision | ±0.01mm |
| Marking frequency | 0-30KHz |
| Marking depth | ≤0.3mm (depend on material) |
| Cooling type | Air cooling |
| Applicable materials | Metal and part of non-metal materials |
| Work temperature | 0℃-40℃ |
| Input voltage | 110V/220V |
| Warranty | 2 years |
| Outer size | 46*33*58cm |
| Packing size | 66*38*39cm |
| Packing weight | 34kgs |
Sample Show
