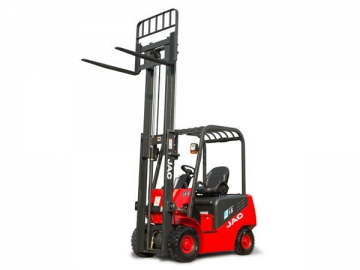

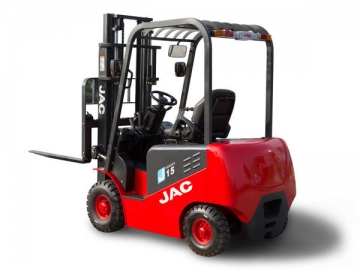

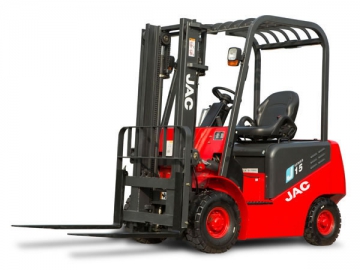

Electric Forklift (1-1.8T Four Wheel Forklift, J Series)
| Model | CPD10J, CPD15J, CPD18J |
| Rated Load Capacity | 1000kg, 1500kg, 1800kg |
| Motor | DC/AC DC/AC |
| Controller | USA CURTIS controller |
| Battery capacity | 48V/400AH |
| Standard Mast | 2-stage mast (3m) |
| Container Mast (Optional) | 2-stage or 3-stage full free mast (3m-6m) |
| Tyre | Pneumatic tyre (Standard), solid tyre (Optional) |
| Side Shifter (Optional) | Integrated type side shifter, CASCADE side shifter |
Related Information
HS Code: 8427209000
Brand: JAC
Target Market: Global market
Certificate: CE/SGS/ISO 9001/ISO 14001/SGS
Production Capacity: 20,000 sets per year
Features
1. The J series electric forklift comes with enclosed type dashboard, creating neat and orderly working environment for the operator.

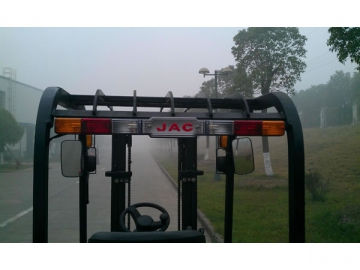

2. The combined type design of the taillight makes for nice appearance of the 1-1.8T four wheel forklift.

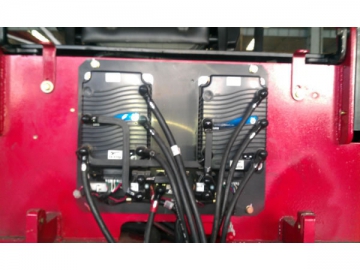

3. The imported CURTIS controller is installed with our patented technology, to achieve optimal heat dissipation effect.

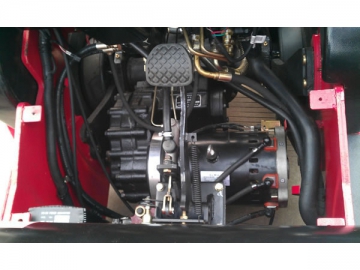

4. The transverse gearbox of the electric forklift effectively improves the transmission efficiency and working hours of the battery.
5. Granted the national patent, the 360° rotatable plate-type drive axle makes the maintenance of the motor and the gearbox easier.

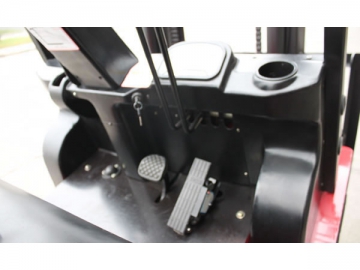

6. Our industrial forklift is installed with CURTIS accelerator. Based on ergonomics, we particularly manufacture the electric forklift with the foot brake pedal slightly higher than the accelerator.

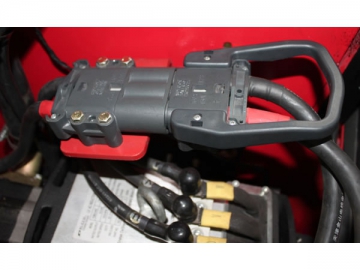

7. REMA connector for convenient power supply connection

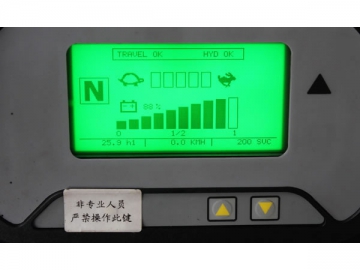

8. The lift truck is constructed with LCD instrument panel with good resistance to water and vibration from CURTIS. The important information can be displayed on the screen completely. So the user can understand the working conditions of the product timely and precisely.
| Model | Unit | CPD10J | CPD15J | CPD18J | |
| Load Capacity | Kg | 1000 | 1500 | 1800 | |
| Load Center | mm | 500 | 500 | 500 | |
| Mast Lifting height | mm | 3000 | 3000 | 3000 | |
| Mast Free Lift | mm | 120 | 120 | 120 | |
| Mast Lifting Speed (With Load) | mm/s | 280 | 280 | 280 | |
| Mast Tilting Angle (Front/Rear ) | 6°/ 12° | 6°/ 12° | 6°/ 12° | ||
| Driving Speed | km/h | 14 | 14 | 14 | |
| Turning Radius | mm | 1900 | 2030 | 2030 | |
| Ground Clearance | mm | 90 | 90 | 90 | |
| External Dimension | Length to face of forks | mm | 2158 | 2220 | 2220 |
| Overall width | mm | 1072 | 1072 | 1072 | |
| Height of overhead guard (cabin) | mm | 1990 | 1990 | 1990 | |
| Height of mast, extended | mm | 4030 | 4030 | 4030 | |
| Wheelbase | mm | 1370 | 1370 | 1370 | |
| Tread | Front | mm | 894 | 894 | 894 |
| Rear | mm | 920 | 920 | 920 | |
| Overhang (front) | mm | 407 | 407 | 407 | |
| Fork | mm | 1070 | 1070 | 1070 | |
| Service Weight | kg | 2840 | 3000 | 3120 | |
