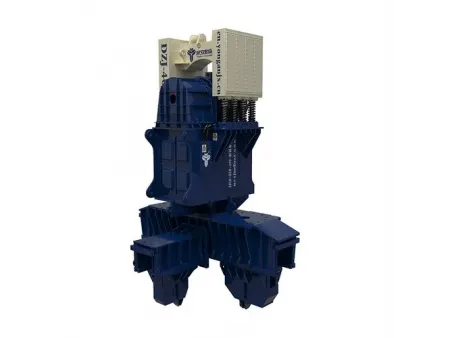

Electric Vibratory Hammer
Large Size (Max. Motor Power 600KW)
DZJ-200/DZJ-240/DZJ-300/DZJ-400/DZJ-480/DZJ-600
Vibratory pile driving hammer
Our large size electric vibratory hammers are high-performance engineering tools powered by electricity, making them eco-friendly and efficient. They feature FAG X-life series spherical roller bearings that are specifically designed for vibratory hammers, ensuring over five times the lifespan of standard hammers. With motor power ranging from 200KW to 600KW, they are ideal for driving and extracting large piles to enhance soil density and load-bearing capacity. Customization is available to meet your specific requirements.
Customizable Options
Customized options for hydraulic clamps are available

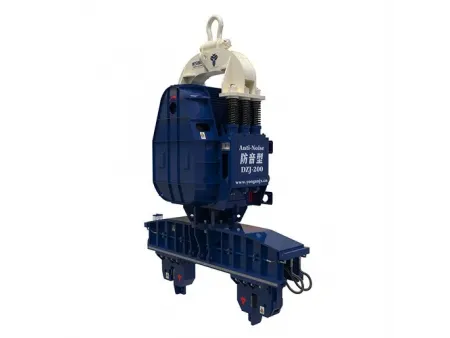

| Model | DZJ-200 |
| Motor Power (kW) | 200 |
| Eccentric Moment (Nm) | 1640 |
| Centrifugal Force (kN) | 0-1600 |
| Frequency (rpm) | 0-960 |
| Maximum Amplitude (mm) | 0-16 |
| Maximum Line Pull (kN) | 588 |
| Dimensions (L×W×H) (mm) | 2150×1750×3250 |
| Weight (without clamp) (kg) | 11500 |
| Cable (mm²) | 120 |
| Clamp Scope (mm) | 800-3000 |
| Generator Capacity (kW) | 450 |
| Minimum Crane Capacity (ton) | 120 |

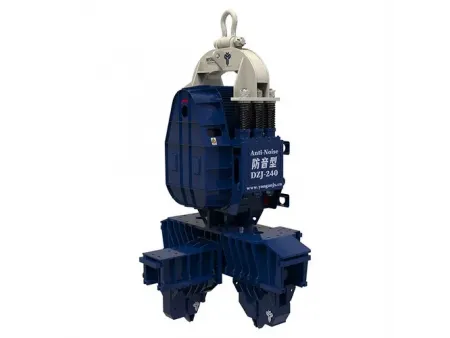

| Model | DZJ-240 |
| Motor Power (kW) | 240 |
| Eccentric Moment (Nm) | 1804 |
| Centrifugal Force (kN) | 0-1822 |
| Frequency (rpm) | 0-960 |
| Maximum Amplitude (mm) | 0-14 |
| Maximum Line Pull (kN) | 638 |
| Dimensions (L×W×H) (mm) | 2300×1850×3400 |
| Weight (without clamp) (kg) | 14500 |
| Cable (mm²) | 120 |
| Clamp Scope (mm) | 800-3000 |
| Generator Capacity (kW) | 600 |
| Minimum Crane Capacity (ton) | 130 |

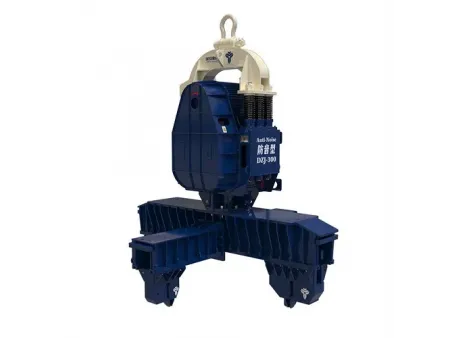

| Model | DZJ-300 |
| Motor Power (kW) | 300 |
| Eccentric Moment (Nm) | 2164 |
| Centrifugal Force (kN) | 0-2185 |
| Frequency (rpm) | 0-960 |
| Maximum Amplitude (mm) | 0-16.5 |
| Maximum Line Pull (kN) | 686 |
| Dimensions (L×W×H) (mm) | 2450×2000×3450 |
| Weight (without clamp) (kg) | 15000 |
| Cable (mm²) | 120 |
| Clamp Scope (mm) | 800-3000 |
| Generator Capacity (kW) | 600 |
| Minimum Crane Capacity (ton) | 130 |
| Model | DZJ-400 |
| Motor Power (kW) | 400 |
| Eccentric Moment (Nm) | 3180 |
| Centrifugal Force (kN) | 0-3250 |
| Frequency (rpm) | 0-960 |
| Maximum Amplitude (mm) | 0-16 |
| Maximum Line Pull (kN) | 850 |
| Dimensions (L×W×H) (mm) | 2150×2350×4800 |
| Weight (without clamp) (kg) | 25000 |
| Cable (mm²) | 120 |
| Clamp Scope (mm) | 800-3000 |
| Generator Capacity (kW) | 800 |
| Minimum Crane Capacity (ton) | 200 |

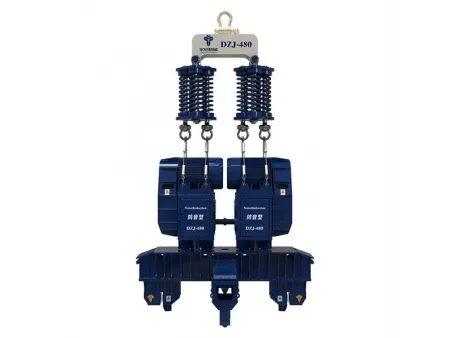

| Model | DZJ-480 |
| Motor Power (kW) | 480 |
| Eccentric Moment (Nm) | 3608 |
| Centrifugal Force (kN) | 0-3644 |
| Frequency (rpm) | 0-960 |
| Maximum Amplitude (mm) | 0-14 |
| Maximum Line Pull (kN) | 1176 |
| Dimensions (L×W×H) (mm) | 4000×1950×5300 |
| Weight (without clamp) (kg) | 30000 |
| Cable (mm²) | 120 |
| Clamp Scope (mm) | / |
| Generator Capacity (kW) | 800 |
| Minimum Crane Capacity (ton) | 200 |

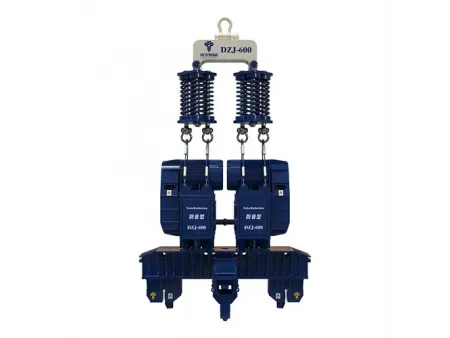

| Model | DZJ-600 |
| Motor Power (kW) | 600 |
| Eccentric Moment (Nm) | 4328 |
| Centrifugal Force (kN) | 0-4370 |
| Frequency (rpm) | 0-960 |
| Maximum Amplitude (mm) | 0-16.5 |
| Maximum Line Pull (kN) | 1352 |
| Dimensions (L×W×H) (mm) | 4420×2150×5500 |
| Weight (without clamp) (kg) | 30500 |
| Cable (mm²) | 150 |
| Clamp Scope (mm) | / |
| Generator Capacity (kW) | 800 |
| Minimum Crane Capacity (ton) | 200 |
Mounting Options

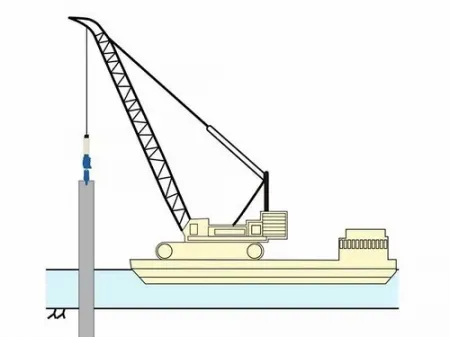

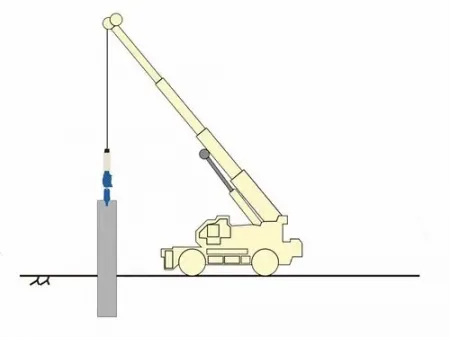

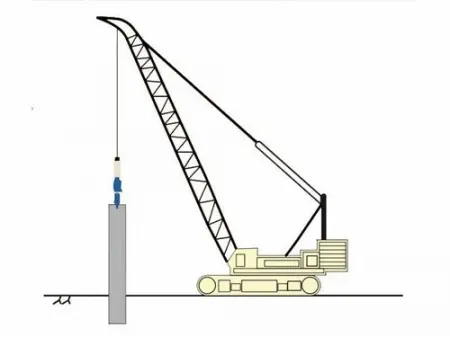

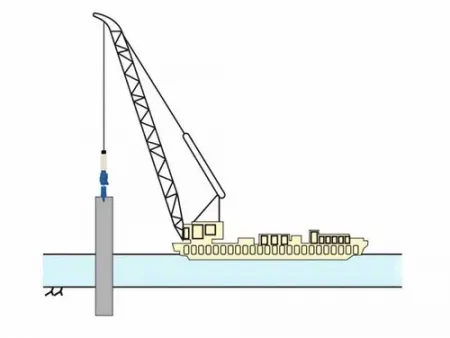

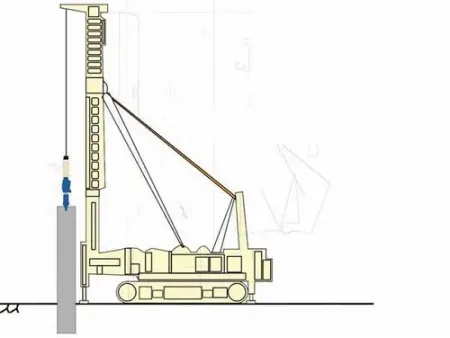

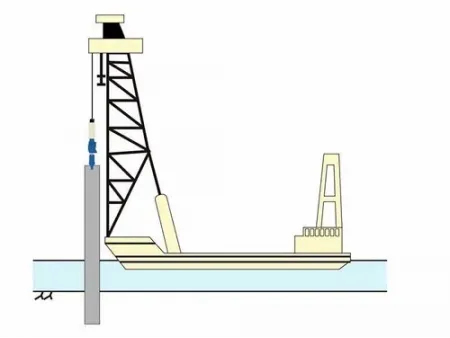

Operated by suspending the electric vibratory hammer using cranes for construction.
Applications
- Civil Infrastructure Construction
- Sea Bridge Construction
- Harbour Construction
Suitable Pile Types
- Steel Tubular Piles
- Concrete Piles
