Double Column Machining Center

LM-4025 Gantry 3-axis CNC machine, a heavy duty lathe, is specially designed for large and complex components. Its travels on the X axis, Y axis and Z axis are 4000mm, 2700mm and 1000mm respectively, with a positioning accuracy of 0.035/1000mm. This CNC machine requires a power of only 45kVa.

Parameters
Model LM-4025
Travels
X-axis travel (mm) 4000
Y-axis travel (mm) 2700
Z-axis travel (mm) 1000
Distance from spindle nose to table center (mm) 200-1200
Table (gantry) width (mm) 2500
Worktable
Worktable area (mm) 4000×2100
Maximum weight on table (kg) 10000
T-slot (width – number of slot x spacing) (mm) 9-28×220
Spindle
Standard spindle speed (rpm) 6000
Spindle taper BT50φ190
Spindle drive mode Belt drive
Spindle power (KW) 22
Feed
Cutting feed (mm/min) 8000
Rapid feed (m/min) 10/12/10
Linear guide rail width / number of tracks (mm) 2-55X2-55Y:Z box guideway
Others
Three-axis motor power (KW) 7.0/7.0/7.0
Positioning accuracy (mm) 0.035/1000
Repeatability (mm) 0.025
Control system MISUBISHI: M80A/M80B, FANUC:Oi-MF, SINUMERIK 828D
Coolant tank (Pump) (HP) 0.48
Power requirement (KVA) 45
Air pressure (bar) 6.5
Machine weight (t) 38
Machine dimension (mm) 9800×4450×4950
Components of gantry milling machine

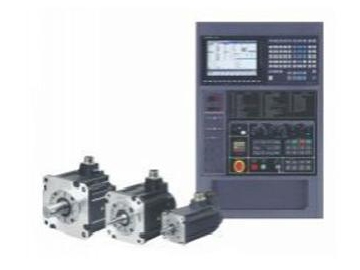

  • Control system and motor
  • Box guideway

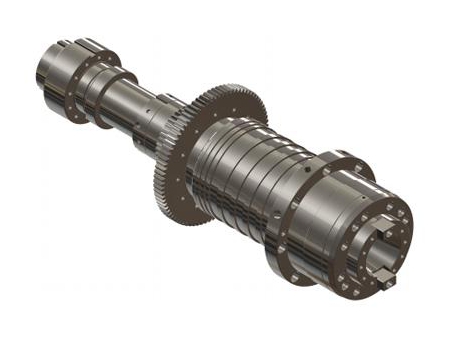

  • Mechanical spindle, gear drive

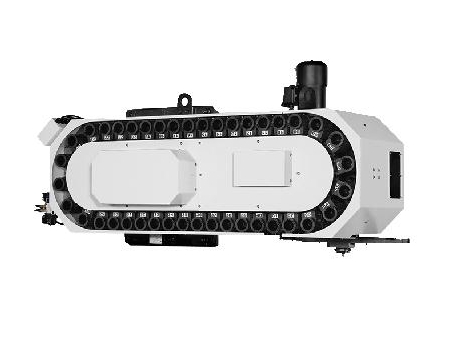

  • Chain-type tool magazine
