Electric Core Drill

Core drilling machine is a heavy-duty power tool designed to extract cylindrical core samples or create precise circular holes in hard substrates such as reinforced concrete, brick walls, asphalt, rock, and stone.

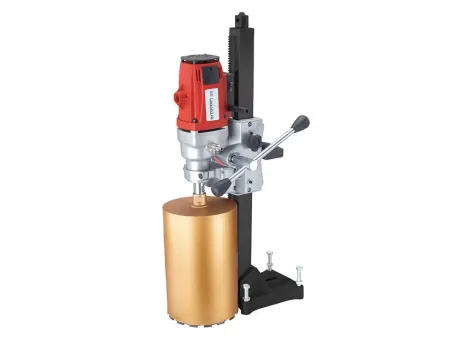

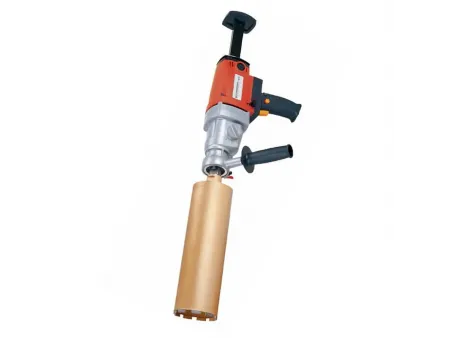

CoEazy offers diamond core drills ranging from handheld core drills to angle-adjustable stand-mounted core drilling machines, supporting a maximum drilling capacity from 80mm to 260mm (compatible with drill bit diameters from 8mm up to 300mm).

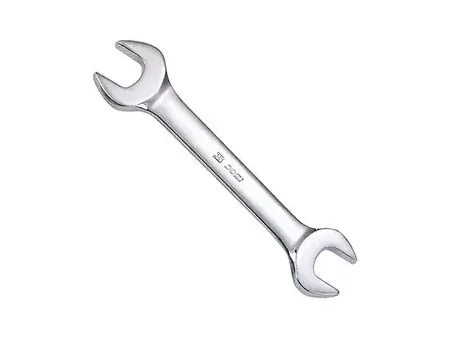

Standard Accessories

Optional Drill Bits

Various Sizes of Core Drill Bits


Diameter (mm)	Size of Segment	Total Length	Number of Teeth
Diameter (mm)	(Length×Thickness×Height)	Total Length	(pcs)
32	15×3.8×10	450mm	4
38	15×3.8×10	450mm	5
52	24×3.8×10	450mm	5
65	24×3.8×10	450mm	6
78	24×3.8×10	450mm	7
85	24×3.8×10	450mm	8
92	24×3.8×10	450mm	8
107	24×4.0×10	450mm	9
117	24×4.0×10	450mm	9
127	24×4.0×10	450mm	11
135	24×4.0×10	450mm	11
145	24×4.0×10	450mm	11
152	24×4.2×10	450mm	12
162	24×4.2×10	450mm	13
172	24×4.2×10	450mm	13
182	24×4.2×10	450mm	13
192	24×4.5×10	450mm	16
200	24×4.5×10	450mm	16
212	24×4.5×10	450mm	18
221	24×4.5×10	450mm	18
252	24×5.0×10	450mm	20
300	24×5.0×10	450mm	26
350	24×5.5×10	450mm	28

Features

The multi-functional design allows for drilling in reinforced concrete, air conditioning installation holes, range hood vent holes, water supply and drainage pipes, and bridge engineering projects.
The durable lifting mechanism ensures smooth and stable elevation, improving efficiency and extending the tool’s lifespan.
The ceiling support design features a guide pin, allowing for external connection to steel pipes for secure overhead installations.
The independent safety switch has an embedded anti-misoperation design, preventing accidental activation for safer operation.

The built-in mechanical clutch enhances drilling safety by reducing the risk of injury during use.
The overload protection system automatically trips to prevent motor burnout when under excessive load.
The full copper motor is designed with a copper rotor and stator, ensuring high efficiency and durability.

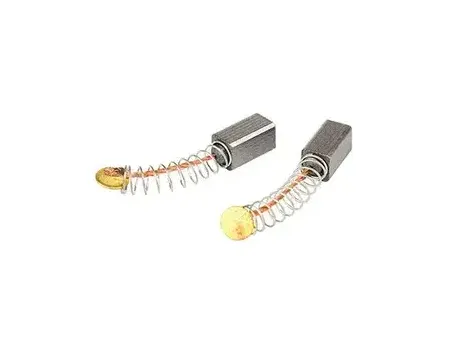

The external carbon brush design makes carbon brush replacement quick and effortless, reducing maintenance time.
The adjustable industrial-grade base includes angle adjustments and built-in wheels, making transportation more convenient.

Applications

Also known as a permanent lifting magnet, the diamond core drill is a highly practical power tool widely used in construction, renovation, and home improvement for drilling reinforced concrete. It is commonly used for projects such as underground protective barriers, load-bearing walls, floors, roads, dams, tunnels, and bridges. Additionally, it is essential for drilling cement surfaces for installations including electrical wiring, telephone lines, air conditioning units, gas pipes, drainage systems, fire protection systems, and plumbing fixtures.
