KR 24 Standing Seam Roof Roll Forming Machine
Request a Quote
| Raw Material | |
| Applicable Materials | Aluminum-Magnesium-Manganese Plate (thickness 0.7-1.2mm) Color-Coated Steel Plate (thickness 0.4-0.9mm) |
| Rolling Strength | Q235MPA |
| Feeding Width | 250-700mm (customizable) |
| Effective Width | 170-620mm (customizable) |
| Machine Dimensions & PLC | |
| Machine Size | Approx. 8×1.6×1.65m |
| Machine Weight | 5-8t |
| Machine Color | Customizable |
| Control System | Fully automatic control with PLC touch screen and frequency converter |
| Voltage | 380V, 50Hz, 3 Phase (upon customer's request) |
| Roll Forming Machine | |
| Main Shaft | Diameter: Ø60-70mm, Material: 45# steel (finish turning) |
| Roller Material | 45# steel (hard chrome plating, quenched to HRC 55-62) |
| Forming Stations | 8-20 stands |
| Motor Power | 3.0-11kW |
| Forming Speed | 8-30m/min |
| Cutting Device | |
| Cutting Method | Automatic cutting (3.0-11kW) |
| Cutting Blade Material | Cr12Mov (heat treatment, HRC 58-60) |

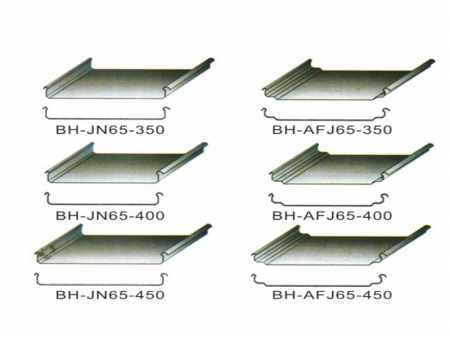

(Select from our standard profiles below, or send us your customized drawing)
Process
Decoiling → Feeding & Guiding→ Roll Forming → Automatic Cutting-To-Length → Finished Product Collection
| No. | Equipment | Quantity |
| 1 | 5T Manual Uncoiler | 1 Set |
| 2 | Roll Forming Machine | 1 Set |
| 3 | Cutting Device | 1 Set |
| 4 | Hydraulic Power Unit | 1 Set |
| 5 | Control System (including Cabinet) | 1 Set |
| 6 | Run-Out Table | 1 Set |
| Name | Amount |
| Decoiler | 1 |
| Sewing Machine | 2 |
| Collection Table | 1 |
| Clamp | 4 |
| Bearing (208#) | 4 |
| Drive Chain | 3 |
| Chain Link | 3 |
| Half Section | 3 |
| Super Pliers | 1 |
| Metal Scissors | 1 |
| Wrench | 1 |
| Travel Switch | 1 (set) |
