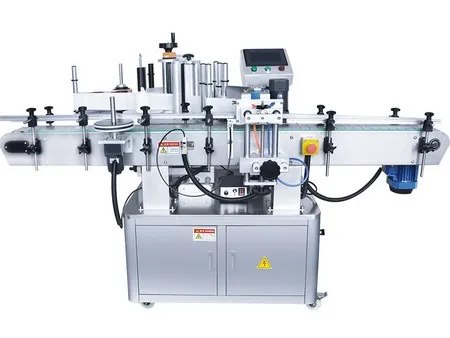

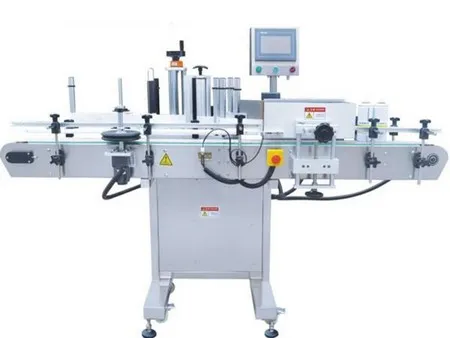

Single Sided Labeling Machine
Request a Quote
Automatic label applicator for applying adhesive labels on flat or curved surfaces
The automatic single-sided labeling machine is mainly used for applying labels to the sides of round or square objects. The machine operates with stability and reliability, ensuring smooth label application and clear printing of dates and batch numbers (the printer allows for three rows). It features multiple control systems to automatically stop the machine in case of missing labels, broken labels, or missing bottles. Our machine can be integrated into a production line or operated individually. Custom printing functions are also available. This equipment is widely used in pharmaceutical, food, chemical industries, etc.
Technical Specifications
| Model | YX-510B |
| Drive | Stepper motor |
| Product Size | Max. height: 200mm Max. width: 800mm (customizable) |
| Labeling Speed | 50-80pcs per minute |
| Label Size | Height: 20-200mm Length: 20-340mm |
| Labeling Accuracy | ±1mm |
| Machine Dimensions (L×W×H) | 1600×700×1100mm |
| Machine Weight | 200kg |
| Power Supply | AC 220V 50/60HZ 250W |
Configurations
| Item | Brand |
| Push Button | Schneider Electric |
| Electromagnetic Contactor | Schneider Electric |
| Repeater Unit | Omron |
| Motor | JSCC |
| Bearings | NSK |
| Touch Panel | WEINVIEW |
| Fiber Optic Units | Autonics |
| Switching Power Supply | NWELL |
| Servo Motor | SNAYO |
