CO₂ Laser Cutting Machine
- Power:130W
- Cutting Speed: 0-36m/m
- Repeat Accuracy: ±0.05mm
- Working Area: 1300X900mm

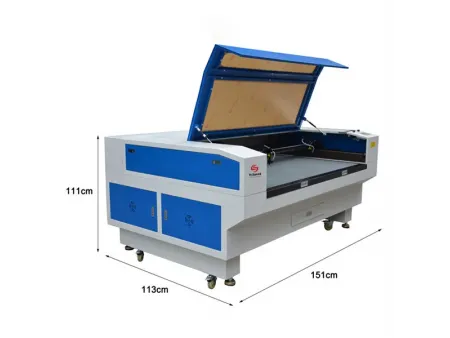

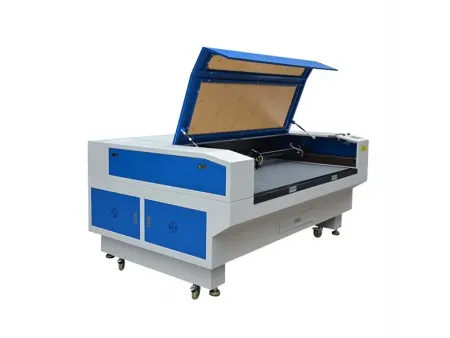

The CO₂ glass tube laser cutting machine features a centered cutting area with an open top cover for convenient loading and unloading. An independent built-in storage cabinet door keeps tools organized, while universal wheels at the bottom allow for easy equipment repositioning, adapting to flexible production needs. Core components are modularly assembled for quick disassembly and reassembly during maintenance, reducing downtime. Its 7-inch touchscreen allows new users to get started within 1 hour. Equipped with a renowned brand Reci glass tube, it offers more stable performance and excellent cost-effectiveness.
Acrylic, wooden crafts, leather, paperboard, fabric, rubber, plastic.
| Model | |
| Laser Type | CO2 laser |
| Laser Power | 130W |
| Engraving Speed | 0-64m/m |
| Cutting Speed | 0-36m/m |
| Repeat Accuracy | ±0.05mm |
| Moving System | CNC control system |
| Cooling Mode | Water-cooling and protection system |
| Overall Power Consumption | ≤1250w |
| Working Voltage | 220±10% 50Hz(60Hz) |
| Operating Temperature | 0~45ºC |
| Operating Humidity | 5%-95% |
| Controlling Software | Ruida Control Card |
| Graphic Supported Format | CAD, MP,JPG,PNG,TIF,PCX,TAG,IOO,GIF,PLT |
| Working Area | 1300mmX900mm |
| G.W | 550KG |
| Package Dimension | 2000mmX1600mmX1270mm |
Laser cutting control cabinet
Integrates an advanced CNC system, supporting multi-axis linkage and real-time data processing to ensure precise and synchronized cutting trajectories with an error of ≤±0.05mm, suitable for complex graphic processing. It supports third-party software integration, such as CAD/AI drawing import, and is CE safety certified, equipped with an emergency stop button.
Honeycomb working platform
Its porous structure reduces material contact area, preventing scratches on delicate materials like mirrored acrylic, while also improving airflow circulation and reducing cutting dust residue.
Glass laser tube
Utilizes a renowned industry brand Reci laser tube, guaranteeing quality and high cost-effectiveness, with a price that is only 1/10th of imported metal tubes. Its 10.6μm wavelength is optimized for non-metal materials like acrylic, wood, and leather, providing smooth, char-free cutting edges that require no secondary polishing.
RD touch screen system
Features a 7-inch high-definition touch screen with a graphical interface, supporting drag-and-drop file import, allowing new users to master it within 1 hour. It visually displays cutting progress, equipment status, and error codes, facilitating technical team support and reducing downtime.
- Glass Laser Tube
- Reflective Lenses
