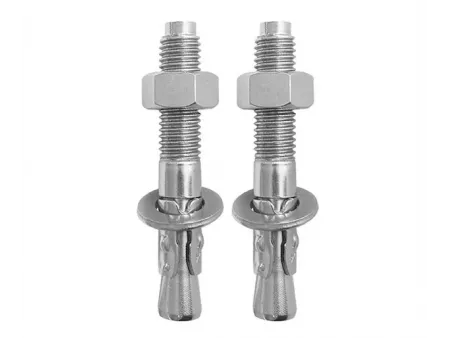

Wedge Anchor
Request a Quote
Mechanical Anchors
Expansion anchors for concrete and masonry
Wedge anchor is a versatile mechanical fastener engineered for anchoring into concrete (≥C20) and natural hard stone. Manufactured from Grade 5.8 / 8.8 alloy steel, A2/A4 stainless steel (50/70/80 grades), or TA2 titanium alloy, it offers a combination of high tensile capacity, ease of installation, and durable expansion performance.
Applications
- Suitable for tension zone or cracked concrete (≥C20) and natural stone substrates
- Anchoring of equipment, channel steel, rails, and support brackets
- Fastening under impact or dynamic loads
- Structural connections for beams and columns
- Exterior wall, pipeline, and general-purpose fastening
- Ideal for medium-duty and light structural applications
Technical Data
| Anchor rod size | Hole depth (mm) | Anchor length (mm) | Tension load (kN) | Shear load (kN) | |||
| Cracked concrete | Non-cracked concrete | Cracked/Non-cracked concrete | |||||
| 5.8/8.8/304 | 5.8/8.8/304 | 5.8 | 8.8 | 304 | |||
| M6 | 42-52 | 50-65 | 2 | 2.8 | 3.1 | 4.9 | 1.6 |
| M8 | 44-54 | 75-95 | 2.2 | 3.1 | 4 | 6.4 | 2.1 |
| 44-84 | 95-115 | 3.7 | 5.3 | 4 | 6.4 | 2.1 | |
| M10 | 55-65 | 90-130 | 3.3 | 4.6 | 6.4 | 10.2 | 6.1 |
| M12 | 72-82 | 115-145 | 5.4 | 7.6 | 9.3 | 14.8 | 8.9 |
| 87-122 | 185-255 | 10 | 14 | 17.3 | 14.8 | 8.9 | |
| M16 | 85-100 | 140-165 | 7.8 | 10.9 | 17.3 | 27.6 | 9.1 |
| 85-140 | 215-295 | 11.6 | 16.3 | 17.3 | 27.6 | 9.1 | |
| M20 | 98 | 98 | 8.8 | 12.3 | 26.9 | 43.1 | 14.1 |
| 98-123 | 98-123 | 11.2 | 15.7 | 26.9 | 43.1 | 14.1 | |
| M24 | 100-130 | 100-130 | 12.1 | 17 | 38.8 | 62.1 | 20.4 |
Features
- Cold-forged threaded rod and cold-rolled expansion clip for consistent quality
- Special surface treatment ensures smooth and reliable expansion
- Designed for tight edge distances and small spacing requirements
- Embedment depth indicator allows for visual inspection
- Threaded rod can be adjusted during installation without risk of breakage
- Wedge-shaped expansion sleeve delivers secure post-installed anchoring
- Available in multiple embedment depths to optimize load-bearing performance
- Supports both through-fastening and pre-positioned installation
- Expansion is achieved with minimal nut rotation, ensuring effective anchorage in tension zones
