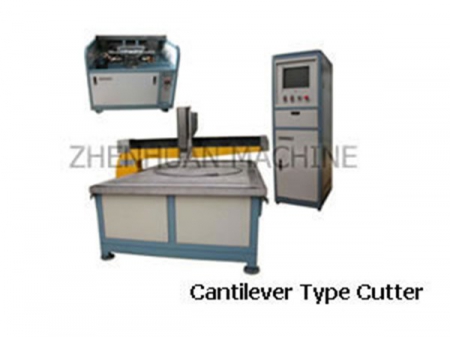

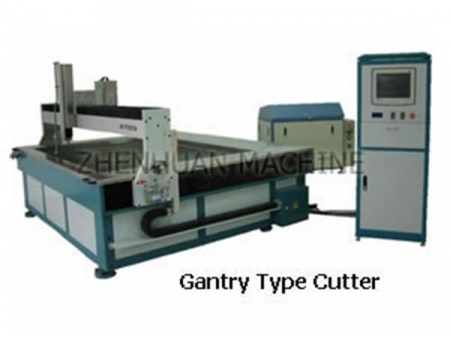

Water Jet Cutting Machine

Features

• This cutting machine is free of heat-affected zone (HAZ) or heat distortion.
• It provides easy control, high accuracy and excellent edge finishing without frayed edges or burrs.
• Small kerf size (usually less than 1.2mm), low waste.
• This water jet cutting machine can cut almost all kind of materials, even sandwich panels.
• No heat generated.
• It can cut plastic and rubber without giving out poisonous gas.

Technical Data

• Dimension of cutting tablecan be supplied as requirements
• Main driving motorAC servo motor, 22kW, 380V, 50Hz
• Control systemspecially designed based on windows
• Water jet pressure300MPa (44,000PSI) or 380MPa (560MPa)
• Re-positioning accuracy /-0.01mm
• Processing accuracy /-0.1mm
• Speedbased on the material and its thickness

Note: We can design and manufacture water jet cutting machine based on detailed requirements.
