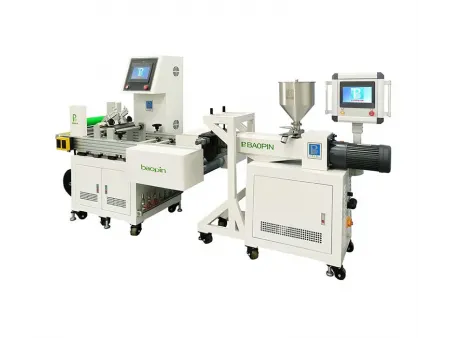

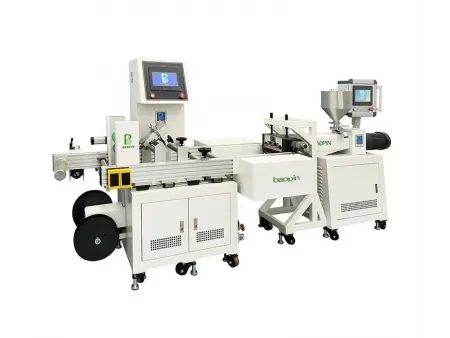

BP-8187-B Laboratory Cast Film Machine
Request a Quote
Laboratory cast film line for the production of single-layer cast flat films and sheets made from various polymers
- PLC control
- Screw diameter: 20mm (others on request)
- L/D ratio: 28:1
- Film thickness: 0.05-0.25mm adjustable
The laboratory cast film machine is suitable for processing a wide range of common plastics such as PE, PP, PS, PC, PET, ABS, and PVC. This laboratory cast film is equipped with both horizontal and vertical extrusion chill rolls, allowing it to simulate single-layer cast film and sheet extrusion processes. It is perfect for producing both thin films and thicker sheets, making it an ideal laboratory extrusion equipment for film and sheet production.
Ready to produce high-quality films and sheets for your research? Discover how the laboratory cast film machine can support your material processing needs.
Technical Data
- Screw diameter
20mm (others on request), with mixing and dispersing functions - L/D ratio
28:1 (others on request) - Screw speed
0-95rpm, frequency conversion speed regulation - Screw Material
Made of 38CrMoAl chromium-molybdenum alloy, with surface treatments including quenching and tempering, nitriding, chroming, polishing, and super-precision grinding. Roughness Ra≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Barrel Material
Made of 45# carbon structural steel, with surface treatments including quenching and tempering, nitriding, chroming, polishing, and super-precision grinding. Roughness Ra≤0.4μm, nitriding depth ≥0.6mm, hardness HRC55~60. - Heating Zone
3-zone heaters for the barrel, 2-zone heaters for the machine head, and safety protective wind hood covering the exterior. - Cooling Device
3 groups of multi-wing fans with super-static forced air cooling. - Drive motor
2.2kW precision gear reduction motor - Electric Control System
PLC programmable 15-inch color LCD touch screen, man-machine interface operation system. The extrusion process can be dynamically displayed and monitored, including temperature control, speed, pressure, driving, and interlock and intercontrol functions. - Dimensions (W×D×H)
1425×500×1360mm - Power supply
AC380V, 50Hz, 3-phase 5-wire - Weight
approx. 175kg
