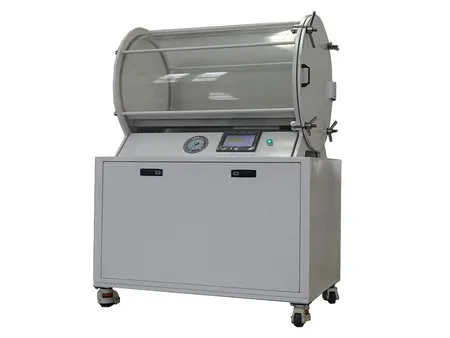

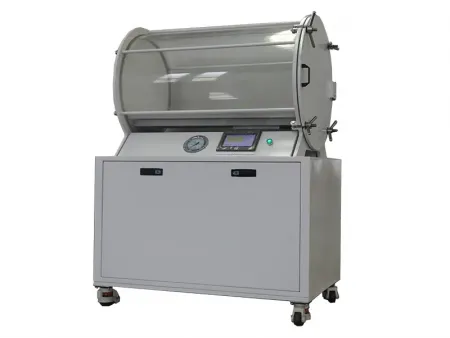

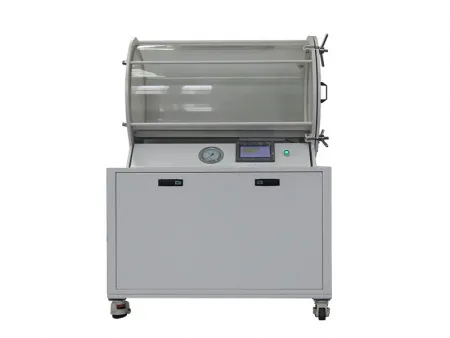

Canine Hyperbaric Oxygen Chamber
HYPERBARIC OXYGEN THERAPY FOR ANIMALS
- Maximum working pressure50kPa-0.2MPa (1.5-3.0ATA)
- Applicable animalCanine/dog
Canine hyperbaric oxygen chambers help increase oxygen levels in the bloodstream, which improves metabolism, supports circulation, and accelerates wound healing. Often used after surgery or injury, they can also help reduce inflammation and pain, making recovery more comfortable. The quiet, enclosed space helps dogs feel calm during sessions, which is especially useful for pets dealing with stress, anxiety, or chronic conditions. Whether for recovery or wellness support, these chambers offer a gentle and effective way to care for canine patients.
Commonly used in veterinary clinics to support recovery from various health conditions. Our canine HBOT chambers help speed up healing, reduce recovery time, and are especially effective for post-operative care, injuries, and inflammation-related disorders.
| Material | Acrylic glass |
| Internal dimensions (D×T×L) | Ø600×17×950mm |
| External dimensions (L×W×H) | 950×550×1250mm |
| Maximum working pressure | 50kPa-0.2MPa (1.5-3.0ATA) |
| Redundant pressure regulator | Equipped |
| Oxygen supply | 10L oxygen generator |
| Pressurization method | Air pressurization |
| Control mode | PLC control |
| Treatment time | 90-120min for your choice |
| Mechanical protection | Manual pressure relief for emergencies |
- The chamber maintains a preset pressure range, and if it exceeds the limit, an automatic release valve activates to ensure safety.
- After each session, the system automatically reduces pressure and provides an alert before the door can be opened.

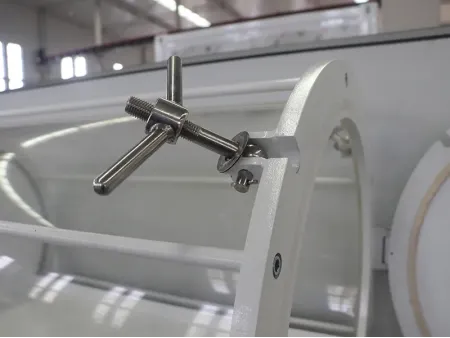

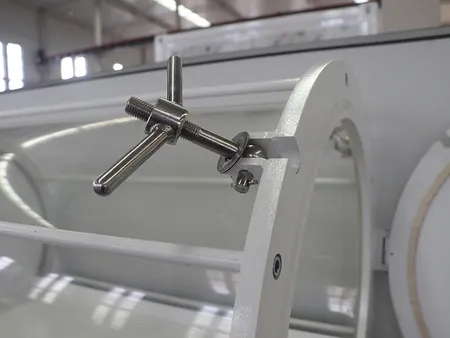

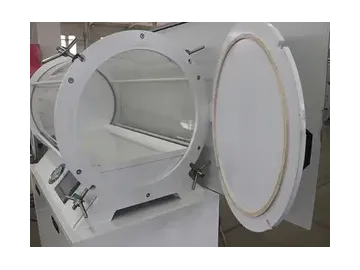

- A handwheel-controlled door offers smoother handling and minimizes the risk of operational errors.
- The built-in oxygen generator allows immediate use without needing external tanks.
- A touchscreen panel provides simple one-touch operation and lets users adjust treatment pressure, oxygen levels, and duration.
- An internal fan circulates air evenly to keep the chamber atmosphere stable and comfortable.
- The spacious interior accommodates dogs of various sizes, offering enough room for comfort throughout the session.

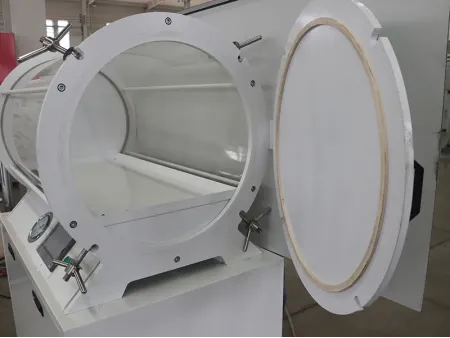

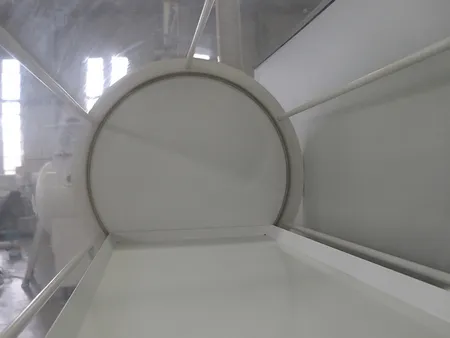

The chamber is built with acrylic glass, allowing easy visual monitoring of the dog’s condition during therapy. The spacious interior prevents feelings of confinement, while the removable tray simplifies cleaning and ensures the animal has enough room to move comfortably throughout the session.

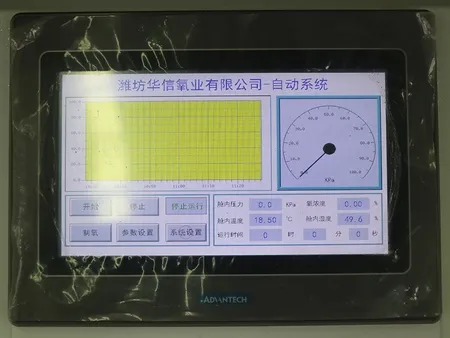

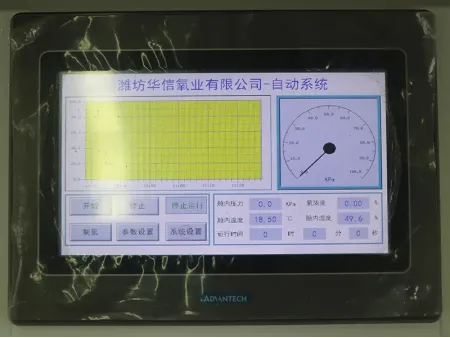

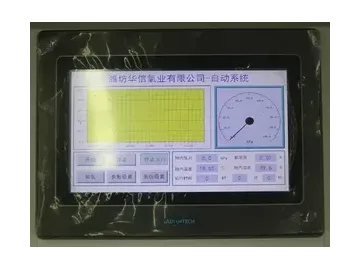

With just one button, users can start the session and adjust key parameters through the intuitive touchscreen interface. The system provides real-time monitoring of pressure, oxygen concentration, temperature, and treatment duration, giving users full control over every therapy detail.
- Water cooling system for enhanced temperature control.
- Optional nebulization system to support respiratory therapies.
- Chamber color can be customized to match clinic or brand preferences.
- Logo customization is available for clinics or veterinary hospitals.
- Pressure settings and other functional parameters can be tailored as needed.
