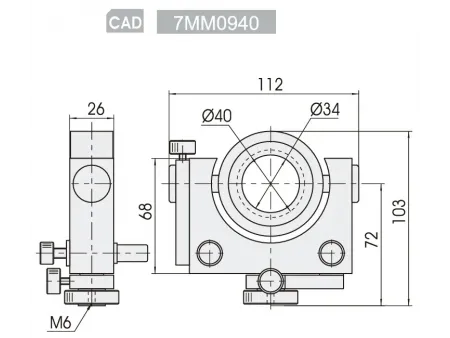

Gimbal Mirror Mount
Request a Quote
7MM09
Features
- Allows the lens to be adjusted in two dimensions while maintaining orthogonal coplanarity, ensuring the optical distance remains constant.
- Equipped with an M6 x 0.25 fine-thread adjustment, including a copper nut for precise and stable positioning.
- Supports 360° coarse adjustment with ±3' fine adjustment for accurate alignment.
- Designed to mount 40mm diameter lenses securely and efficiently.
Ancillary Product
- 7MA3 Optic Adaptor
