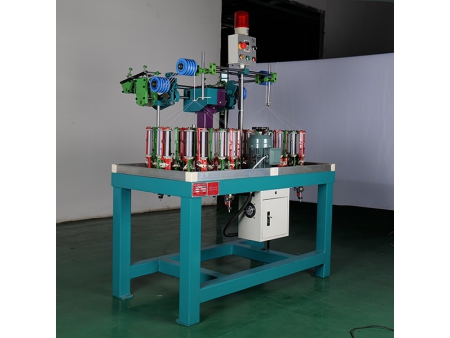

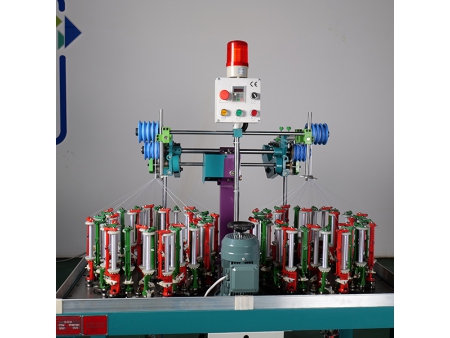

High Speed Round Braiding Machines (Round Rope)

Request a Quote

Website: http://solution-textile.com/6-2-high-speed-round-cord-braiding-machines.html

These high speed round braiding machines are compact pieces of equipment suitable for weaving different round cords. The round braiding machines feature double spindles and operate under frequency control that helps to optimize performance.

They are used to produce products like shoelaces, garment strings, elastic tape, pull tape, etc.

Parameters

Model	Heads	Carriers	Max. horn gear (rpm)	Power (kW)	Bobbin size
C0-5-2-162	2	5	150	0.75	A13
CO-7-2-120	2	6	280	0.55	A 04
CO-9-4-80	4	9	360	0.55	A 01
CO-9-4-90	4	9	300	0.55	A 04
CO-9-8-80	8	9	360	1.1	A 01
CO-9-8-90	8	9	300	1.1	A 04
CO-11-8-80	8	11	360	0.75	A 01
CO-11-8-90	8	11	300	0.75	A 04
CO-12-4-80	4	12	360	0.55	A 01
CO-12-4-90	4	12	300	0.55	A 04
CO-13-2-80	2	13	360	0.55	A 01
CO-13-2-90	2	13	300	0.55	A 04
CO-13-2-130	2	13	242	0.75	A 13
CO-13-4-80	4	13	360	0.55	A 01
CO-13-4-90	4	13	300	0.55	A 04
CO-16-4-80	4	16	360	0.75	A 01
CO-16-4-90	4	16	300	0.75	A 04
CO-16-2-80	2	16	360	0.37	A 01
CO-16-2-90	2	16	300	0.37	A 04
CO-17-2-80	2	17	360	0.55	A 01
CO-17-2-90	2	17	300	0.55	A 04
CO-17-2-13	2	17	242	0.75	A 13
CO-17-4-80	4	17	360	0.75	A 01
CO-17-4-90	4	17	300	0.75	A 14
CO-20-4-80	4	20	360	0.75	A 01
CO-20-4-90	4	20	300	0.75	A 04
CO-21-2-80	2	21	360	0.55	A 01
CO-21-2-90	2	21	300	0.55	A 04
Co-21-4-80	4	21	360	0.75	A 01
CO-21-4-90	4	21	300	0.75	A 04
CO-24-2-80	2	24	360	0.55	A 01
CO-24-2-90	2	24	300	0.55	A 04
CO-25-2-80	2	25	360	0.55	A 01
CO-25-2-90	2	25	300	0.55	A 04
CO-25-4-80	4	25	360	0.75	A 01
CO-25-4-90	4	25	300	0.75	A 04
CO-25-2-11	2	25	230	0.75	A 07
CO-25-2-13	2	25	242	0.75	A 13
CO-26-2-90	2	26	300	0.55	A 01/04
CO-26-2-100	2	26	288	0.55	A 01/04
CO-27-2-90	2	27	300	0.55	A 01
CO-28-2-110	2	28	230	0.55	A 01
CO-29-2-80	2	29	360	0.55	A 01
CO-29-2-90	2	29	300	0.55	A 04
CO-29-2-11	2	29	230	0.75	A 01
CO-32-2-80	2	32	360	0.75	A 01
CO-32-2-90	2	32	300	0.75	A 04
CO-33-2-80	2	33	360	0.75	A 01
CO-33-2-90	2	33	300	0.75	A 04
CO-36-2-80	2	36	360	0.75	A 01
CO-36-2-90	2	36	300	0.75	A 04
CO-36-2-110	2	36	230	0.75	A012
C0-37-2-80	2	37	360	0.75	A 04
CO-37-90	1	37	300	0.75	A 01
CO-37-100	1	37	288	0.55	A 01
CO-37-2-90	2	37	300	0.75	A 01
CO-39-100	1	39	288	0.55	A 01
CO-40-80	1	40	360	0.75	A 01
CO-40-90	1	40	300	0.75	A 04
CO-40-2-80	2	40	360	0.75	A 01
CO-40-2-90	2	40	300	0.75	A 04
CO-41-80	1	41	360	0.75	A 01
CO-41-90	1	41	300	0.75	A 04
CO-41-110	1	41	230	0.55	A 07
