Self-Centering Mirror Mount
Request a Quote
7MML4
Features
- Features three support arms that open and close simultaneously for secure and balanced lens handling.
- Accommodates lenses of various diameters, providing versatility for different applications.
- Maintains the center position of the lens during replacement, ensuring consistent alignment.
- Equipped with a spring-reset mechanism, ideal for lightweight lenses, offering smooth and stable operation.
Specifications

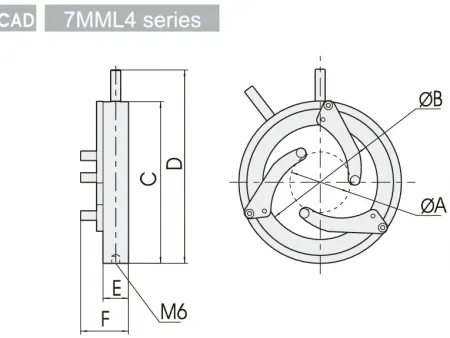

| Model | Diameter of lens A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (g) | |
| Max. | Min. | |||||||
| 50 | 5 | 46 | 70 | 90 | 11 | 19 | 85 | |
| 76 | 5 | 72 | 102 | 126 | 16 | 30 | 192 | |
| 102 | 5 | 100 | 140 | 160 | 16 | 30 | 340 | |
