ZDWE Spur Gear Planetary Gearbox
Request a Quote
Specifications

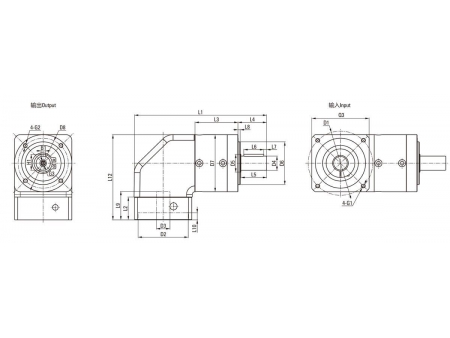

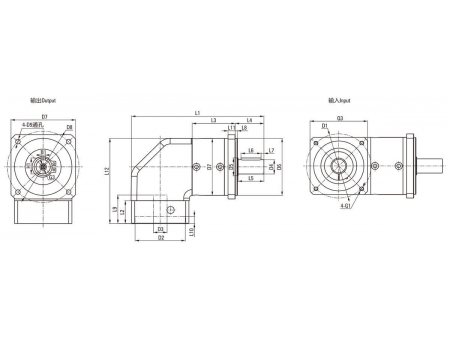

Unit: mm
| Model | | | | | |||||||
| Number of Stage | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 |
| Overall Length L1 | 150 | 163 | 176 | 184.5 | 202.5 | 220 | 249.2 | 277 | 304.5 | 380 | 423.5 |
| Body Length L3 | 46.5 | 59.5 | 72.5 | 60 | 78 | 95.5 | 73.7 | 101.5 | 129 | 141 | 184.5 |
| Output | |||||||||||
| Shaft Length from Output L4 | 35 | 40 | 55 | 87 | |||||||
| Shaft Length from Spigot L5 | 30.5 | 36 | 50 | 80 | |||||||
| Key Length L6 | 25 | 28 | 40 | 70 | |||||||
| Distance from Shaft End L7 | 2.5 | 4 | 5 | 5 | |||||||
| Spigot Length L8 | 3 | 3 | 4 | 5 | |||||||
| Input | |||||||||||
| Motor Flange Length L2 | 20 | 32 | 38 | 66 | |||||||
| Motor Shaft Length L9 | 30 | 40 | 58 | 81 | |||||||
| Motor Location Depth L10 | 5 | 10 | 10 | 10 | |||||||
Established in 1998, Zhongda has grown to become a leading high-tech enterprise in China that combines research, manufacturing, sales, and services in the sector of motor drives, micro motors, precision reducers, and integrated intelligent units. With a registered capital of 104 million Yuan, we have expanded to nine subsidiaries, employing over 1,800 dedicated individuals. In August 2017, we proudly made our mark on the main board of the Shenzhen Stock Exchange under the stock code: 002896.
