Cold Shrink Cable Breakout Boot up to 1kV
Request a Quote

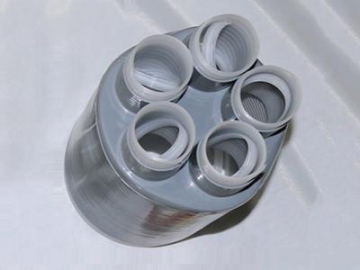

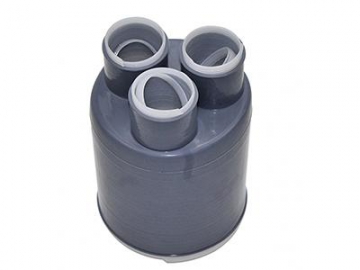

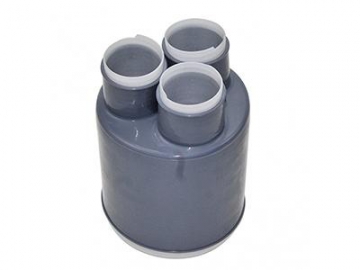

1kV Cold shrinkable branch tubes are used for sealing and insulation protection at the core branch of a multi-core cable. It is more convenient and safer than a heat shrink cable breakout boot as it requires no heat during usage. Depending on the internal cable construction, we offer 4 or 5 core cold shrink cable breakout boots.
Optional type
1kV four core cold shrink branch tubing| Specification | Cross sectional area of applicable cable (mm2) | Diameter before shrinking | |
| Small branch | Big branch | ||
| 1kv4.1 | 25-50 | 18.3 | 50 |
| 1kv4.2 | 70-120 | 23.5 | 64 |
| 1kv4.3 | 150-240 | 31 | 81 |
| 1kv4.4 | 300-400 | 43 | 117 |
| Specification | Cross sectional area of applicable cable (mm2) | Diameter before shrinking | |
| Small branch | Big branch | ||
| 1kv5.1 | 25-50 | 18.3 | 55 |
| 1kv5.2 | 70-120 | 23.5 | 68 |
| 1kv5.3 | 150-240 | 31 | 92 |
| 1kv5.4 | 300-400 | 43 | 124 |
