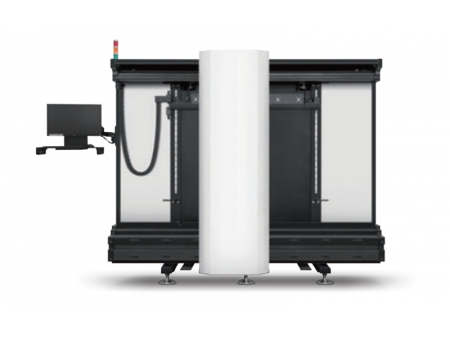

Computer to Screen Plate Machine
Request a Quote
TC-1300CTS
Features
- The vertical accuracy of the two axes is within 5um to ensure system stability.
- The computer to screen plate machine uses a motion system from a German brand, achieving a positioning accuracy of up to 1um.
- This printing machine allows for remote intelligent maintenance and management, as well as unmanned automatic production.
- Advanced DMD optical system from the United States enables perfect reproduction of images.
- Japanese ultraviolet semiconductor laser offers stable light output and long service life.
Technical parameters
| Min mesh frame specification | 300x300 mm |
| Max mesh frame size | 1200×1300mm |
| The wavelength of ultraviolet | 405nm |
| Image resolution | 1270dpi, 2540dpi |
| Thickness of photosensitive adhesive | 2~50um |
| Repeat accuracy | ±5um |
| Size deviation | ±0.01% |
| The file format | one-bit—tiff |
| Working temperature | 23±3℃ |
| Working humidity | 40-70% |
