26713D JIC, Female 74° Cone Seat, ISO 12151-5 - SAE J514
Request a Quote
Model: 26713D

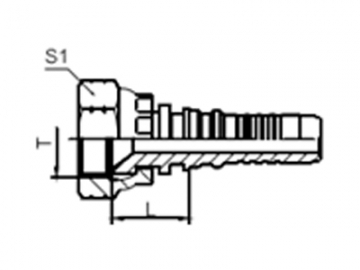

JIC, Female 74° Cone Seat, ISO 12151-5 - SAE J514
| Part No. | Thread T | Hose Bore | Dimensions | ||
| DN | DASH | L | S1 | ||
| 16711-12-12RW | 1.1/16"*12 | 19 | 12 | 26.5 | 32 |
| 16711-16-16RW | 1.5/16"*12 | 25 | 16 | 29.4 | 41 |
| 16711-20-20RW | 1.5/8"*12 | 32 | 20 | 32.3 | 50 |
| 16711-24-24RW | 1.7/8"*12 | 38 | 24 | 35.2 | 60 |
| 16711-32-32RW | 2.1/2"*12 | 50 | 32 | 34.2 | 75 |
