Automatic Centering Transfer Cart
Request a Quote

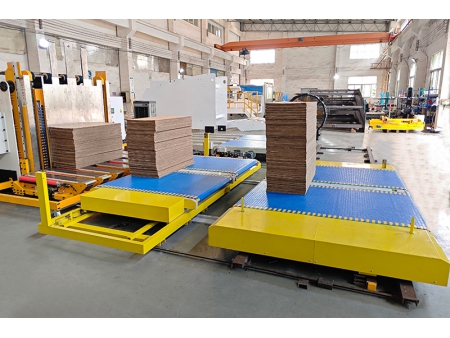

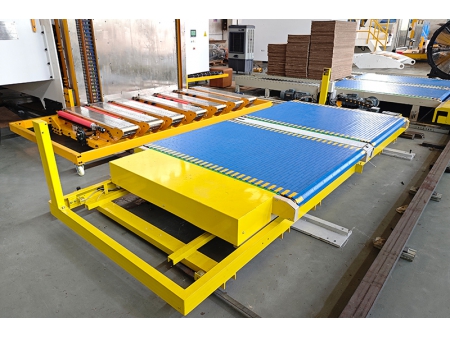

Taiyang’s automatic centering transfer cart is designed to connect corrugated board conveying lines with downstream processes such as printing, die-cutting, and other processes. It integrates conveying and automatic centering functions into a single unit, enabling efficient and stable board transfer without additional auxiliary equipment.
Standard specifications- Chassis material: Welded 10# channel steel steel wheels
- Total power: 3.75 kW (customizable)
- Conveyor type: Modular belt conveyor/roller conveyor (optional)
- Safety configuration: Radar safety detection (optional)
- Power supply: Underground power supply
- Control mode: PLC automatic control
- Dimensions: 2800 × 1400 mm (customizable)
- Intelligent Automatic Centering: Equipped with precision sensors and control systems to continuously adjust board position and ensure boards remain aligned with the centerline when entering downstream processes, improving printing and die-cutting accuracy.
- Seamless Production Line Integration: Simplifies equipment layout and reduces intermediate transfer steps, effectively preventing jamming and misalignment while maintaining smooth production flow.
- Reduced Investment Cost: A single machine with multiple functions eliminates the need for additional auxiliary equipment, significantly reducing equipment investment and maintenance costs.
- Improved Efficiency: Providing high-speed, stable conveying performance that accommodates various board specifications and improves overall production efficiency.
