Integrated crawler-mounted drill rig for surface mining and quarry drilling applications

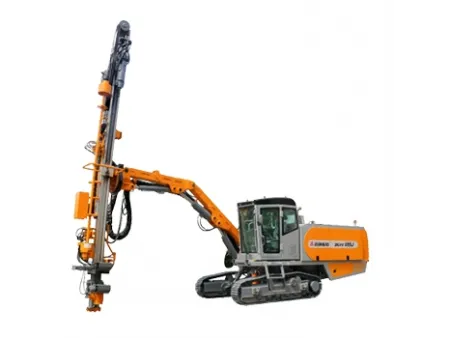

Integrated Tophammer Surface Drill Rig: ZGYX-650 / ZGYX-655J
Max. hole diameter: Ø89mm | Emission standard | China III |
| Model | Cummins QSB4.5-C160 |
| Rated power | 119 kW |
Max. hole diameter: Ø102mm | Emission standard | China II (MTO) | China III (MTO) | China IV (Standard) | Euro V (MTO) |
| Model | Cummins 6BTAA5.9-C205 | Cummins QSB5.9-C210-30 | Cummins B5.9CS4-C210 | DEUTZ TCD6.1 L6 |
| Rated power | 153 kW | 154 kW | 154 kW | 160 kW |
Technical Specifications | Model | YX650 | YX655J |
| Weight | 11000kg | 14100kg |
| Dimensions (L x W x H) | 11300x2430x2900mm | 11300x2450x3100mm |
| Hole range | Ø64-89mm | Ø64-102mm |
| Max. hole depth | 17m | 20m |
| Drifter power | 15kW | 20kW |
| Air compressor pressure | 8.5bar | 8bar |
| FAD | 4.7m³/min | 7m³/min |
| Drilling rod | T45(T38)x3660mm | T51(T45)x3660mm |
| Diesel tank volume | 280L | 440L |

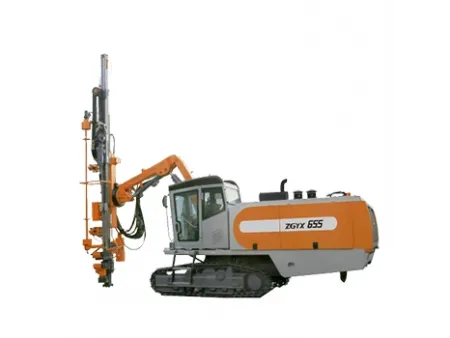

Integrated Top Hammer Surface Drill Rig: ZGYX-655 / ZGYX-660
Max. hole diameter: Ø102mm Standard configuration: Wireless remote control system | Emission standard | China II (MTO) | China III (MTO) | China IV (Standard) | Euro V (MTO) |
| Model | Cummins C8.3 | Cummins QSB8.3 | Cummins B6.7CS4 | DEUTZ TCD7.8 |
| Rated power | 179 kW | 179 kW | 180 kW | 180 kW |
Max. hole diameter: Ø115mm | Emission standard | China II (MTO) | China III (MTO) | China IV (Standard) | Euro V (MTO) |
| Model | Cummins C8.3 | Cummins QSB8.3 | Cummins B6.7CS4 | DEUTZ TCD7.8 |
| Rated power | 179 kW | 179 kW | 177 kW | 180 kW |
Technical Specifications | Model | YX655 | YX660 |
| Weight | 15000kg | 15000kg |
| Dimensions (L x W x H) | 11600x3100x2550mm | 11600x3100x2550mm |
| Hole range | Ø64-115mm | Ø64-127mm |
| Max. hole depth | 24m | 24m |
| Drifter power | 20kW | 20kW / 25kW |
| Air compressor pressure | 10bar | 10bar |
| FAD | 10m³/min | 10m³/min |
| Drilling rod | T51(T45/T38)x3660mm | T51(T45/T38)x3660mm |
| Diesel tank volume | 450L | 450L |
Expert in One-Stop Rock Drilling Solutions Leveraging many years of global field experience to provide perfectly matched drilling tools, drill rigs, and air compressors for your toughest projects.
