Plug-in LED Driver
The plug-in LED driver integrated plugs in different country version can be plugged into socket directly.
Advantage: Small figure, nice outlook, convenient and practical for use without occupying internal space of lighting fixture.
Application: Used for Led table lamp, floor lamp as a necessary part.

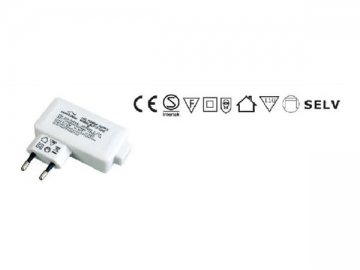

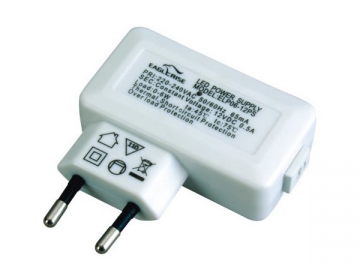

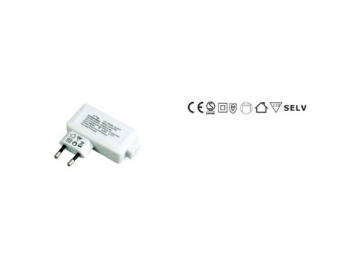

1. EU Version Plug-in Constant Current LED Driver
Features
Installation: Plug-in
Power supply connection: 01 female socket
Load connection: Series connection
Standby Power<0.3
Protections: Short circuit protection and over temperature protection
Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13, EN60598-2-6, EN60598-1
| Model | Input Voltage | Constant Current | Operating Voltage Range | Ta | Tc | Typical Efficiency | Standby Power | Power Factor | Dimensions | ||
| L(mm) | W(mm) | H(mm) | |||||||||
| 220-240VAC 50/60Hz | DC350mA | 3-10.5V | 50°C | 75°C | ≥74% | <0.3W | ≥0.5 | 68.5 | 72.5 | 22 | |
| | 220-240VAC 50/60Hz | DC700mA | 3-3.5V | 50°C | 75°C | ≥64% | <0.3W | ≥0.5 | 66 | 72.5 | 22 |
| | 220-240VAC 50/60Hz | DC350mA | 7.2-18V | 45°C | 75°C | ≥77% | <0.3W | ≥0.5 | 66 | 72.5 | 23 |
| | 220-240VAC 50/60Hz | DC700mA | 7-10.5V | 45°C | 75°C | ≥75% | <0.3W | ≥0.7 | 83 | 76.5 | 22.5 |
| | 220-240VAC 50/60Hz | DC350mA | 21-35V | 45°C | 75°C | ≥78% | <0.3W | ≥0.7 | 83 | 76.5 | 22.5 |
| | 220-240VAC 50/60Hz | DC700mA | 7-14V | 45°C | 75°C | ≥75% | <0.3W | ≥0.7 | 83 | 58 | 22.5 |

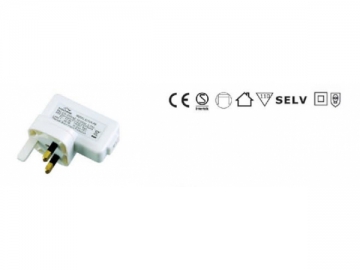

2. GB Version Plug-in Constant Current LED Driver
Features
Installation: Plug –in
Power supply connection: 01 female socket
Load connection: Series connection
Standby Power<0.3
Protections: Short circuit protection and over temperature protection
Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6
| Model | Input Voltage | Constant Current | Operating Voltage Range | Ta | Tc | Typical Efficiency | Standby Power | Power Factor | Dimensions | ||
| L(mm) | W(mm) | H(mm) | |||||||||
| 220-240VAC 50/60HZ | DC350mA | 3-10.5V | 50°C | 75°C | 65% | <0.3W | ≥0.5 | 68.5 | 69.3 | 48 | |
| 220-240VAC 50/60HZ | DC700mA | 3-3.5V | 50°C | 75°C | 60% | <0.3W | ≥0.5 | 68.5 | 69.3 | 48 | |

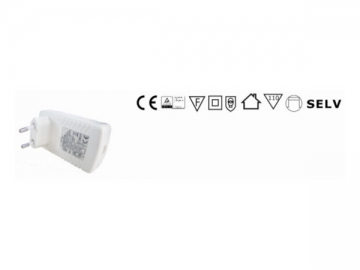

3. EU Version Plug-in Constant Voltage LED Driver
Features
Installation: Plug-in
Supply connection: 01 female socket
Load connection: Parallel connection
Standby Power<0.3
Protections: Short circuit protection and over temperature protection
Compliance
Magnetic Emission: EN55015
Harmonic Standard: EN61000-3-2
Flicker Standard: EN61000-3-3
Immunity: EN61547
Safety Standard: EN61347-1, EN61347-2-13, EN60598-1, EN60598-2-6
| Model | Input Voltage | Constant Voltage | Rated Load | Ta | Tc | Typical Efficiency | Standby Power | Power Factor | Dimensions | ||
| L(mm) | W(mm) | H(mm) | |||||||||
| 220-240VAC 50/60HZ | 12V | 6W | 45°C | 75°C | ≥78% | <0.3W | ≥0.55 | 68.5 | 54 | 22 | |
| 220-240VAC 50/60HZ | 12V | 12W | 45°C | 80°C | ≥78% | <0.3W | ≥0.8 | 83 | 58 | 22.5 | |
| Model | Input Voltage | Constant Voltage | Rated Load | Ta | Tc | Typical Efficiency | Standby Power | Power Factor | Dimensions | ||
| L(mm) | W(mm) | H(mm) | |||||||||
| 220-240VAC 50/60HZ | 12V | 18W | 45°C | 70°C | ≥82% | ≤0.1W | >0.7 | 87 | 47 | 70 | |
| 220-240VAC 50/60HZ | 24V | 18W | 45°C | 70°C | ≥82% | ≤0.1W | >0.7 | 87 | 47 | 70 | |
| Model | Input Voltage | Constant Current | Operating Voltage Range | Ta | Tc | Typical Efficiency | Standby Power | Power Factor | Dimensions | ||
| L(mm) | W(mm) | H(mm) | |||||||||
| 220-240VAC 50/60Hz | 12V | 36W | 45°C | 75°C | ≥84% | ≤0.3W | >0.9 | 103 | 49.5 | 34 | |
| | 220-240VAC 50/60Hz | 24V | 36W | 45°C | 75°C | ≥84% | ≤0.3W | >0.9 | 103 | 49.5 | 34 |
4. NA Version Plug-in Constant Current LED Driver
Features
Installation: Plug-in
Power supply connection: 01 female socket
Load connection: Series connection
Standby Power<0.3
Protections: Short circuit protection and over temperature protection
Compliance
FCC Part15, Subpart B
Safety Standard: UL1310, CSA C22.2 No.223
| Model | Input Voltage | Constant Current | Operating Voltage Range | Ta | Tc | Typical Efficiency | Standby Power | Power Factor | Dimensions | ||
| L(mm) | W(mm) | H(mm) | |||||||||
| 100-120VAC 50/60HZ | DC700mA | 7V-10.5V | 45°C | 75°C | ≥74.6% | <0.3W | >0.7 | 83 | 69 | 22.5 | |
| 100-120VAC 50/60HZ | DC700mA | 9V-16V | 45°C | 75°C | ≥76.5% | <0.3W | >0.7 | 83 | 52 | 22.5 | |
For more information, please refer to the following PDF.
