SGSV15 Multi-Way Directional Valve
Request a Quote
- Its integrated triple-section configuration simplifies complex hydraulic requirements, enabling streamlined and effective system integration
- A diverse selection of valve cores allows for precise customization to meet specific operational criteria, ensuring optimal performance
- The valve supports synchronized actions, providing operators with intricate and precise maneuvering capability
- Engineered for exceptional control accuracy, the valve facilitates nuanced operations, particularly in applications requiring fine adjustments
Applications
- Wheel loaders
- Bulldozers
- Agricultural machinery
- Material handling equipment
- Forestry equipment
Parameters
| Rated pressure (MPa) | 25 (maximum flow: 31.5MPa) |
| Rated flow (L/min) | 45 |
| Port pressure (MPa) | 0.6-2 |
| Pressure range of safety valve (MPa) | 15～31.5 |
| Working voltage of solenoid valve | DC12V |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 7.5 |

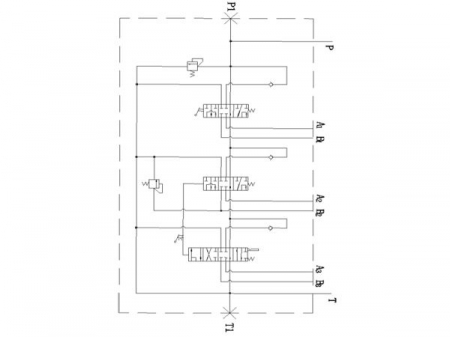

Hydraulic System Schematic Diagram

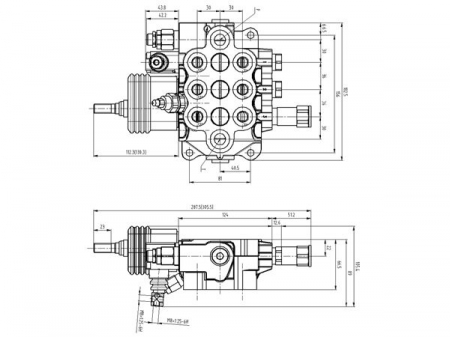

External Connection Dimensions
Professional supplier engaged in the R&D, manufacturing, and sales of various hydraulic components
Annual production capacity of 250,000 sets of hydraulic components
Over 30 series and over 200 varieties and specifications to meet the specific needs of our clients
