Tapered Roller Bearings

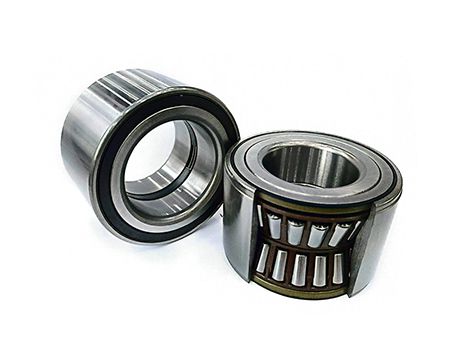

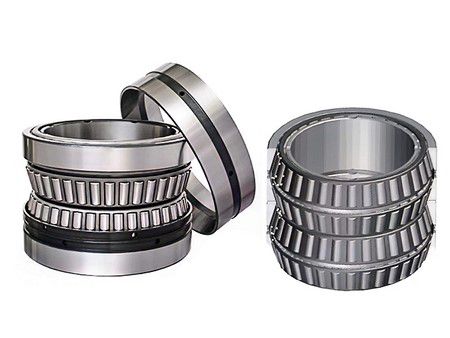

Tapered roller bearings are separate rooling element bearings, with the inner and outer rings having tapered raceways. Available in various structural configurations, including single row, double row, and four-row designs, these bearings accommodate differing load and performance requirements. Single row tapered roller bearings excel in withstanding radial loads and axial loads in one direction. However, under radial loads, they generate axial components, necessitating a complementary bearing capable of handling axial forces in the opposite direction to achieve balance and optimal performance.
- Bearing type: Taper roller bearing
- Material: Chrome steel GCr15
- Precision: P0, P2, P5, P6, P4
- Clearance: C0, C2, C3, C4, C5
- Bearing size: Inner diameter 0-200mm, outer diameter 0-400mm
- Cage material: Brass, steel, nylon, etc.
- Long service life with high quality
- Low noise with strict quality control of JITO bearings
- High load by the advanced high-technical design
- Competitive price, adding value to customer's production
- OEM service offered to meet the customers' requirements
Tapered roller bearings typically feature a separate construction, comprising a conical inner ring assembly consisting of an inner ring with rollers and a cage assembly, which can be mounted independently from the outer cone (outer ring). Tapered roller bearings are widely used in automobiles, rolling mills, mining, metallurgy, plastic machinery and other industries.
