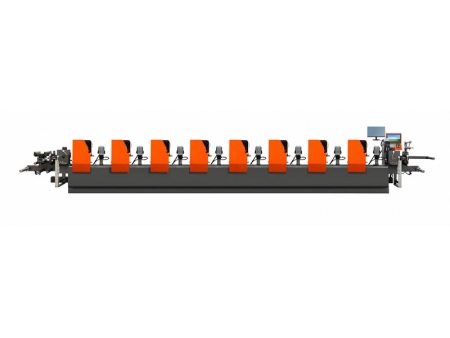

Stack-Type Flexo Printing Press
Request a Quote
Features
- Novel installation method allows the mesh roller and plate roller to be installed within seconds.
- Electronic shaftless drive and automatic pre-registration system allow for time- and material-saving operation.
- Unique and high-precision pressure switch enables the plate roller and mesh roller to be pressed in the right place without any further adjustments.
- A UV drying system is configured.
Applications
Our high-speed stack type flexo printing machine is made in accordance with GMP requirements. This means it is applicable for printing the packages of products like food, medicine, toys, stationery, daily necessities, cosmetics, electronics, hardware, crafts and accessories.
Specifications
| Model | SBJ260 |
| Print station | 6unit |
| Flexo varnishing station | 1unit |
| Gearing | 1/8" cp |
| Max. paper width | 260mm |
| Max. printing width | 250mm |
| Max. dia. Unwind roll | 800mm |
| Max. dia. of Rewind roll | 800mm |
| Print speed.max. | 100m/min |
| Max. printing length | 460.375mm |
| Min. printing length | 190.5mm |
| Rotary die cut speed | 100m/min |
| Server Motor | 3, 380V, 12kW |
| Ink kneading motor(6PCS) | 600W |
| Power | 7.2kW |
| Motor | 15kW |
| Machine weight | 9,800kg |
| Machine dimension | 6000×1160×2335mm |
At CBADEN, we supply an extensive range of converting & printing machines and provide comprehensive services to accommodate customer's individual production demands.
