SPO Automatic Flat Screen Printing Machine

SPO Automatic Flat Screen Printing Machine
SPO Automatic Flat Screen Printing Machine
SPO Automatic Flat Screen Printing Machine
SPO Automatic Flat Screen Printing Machine
Request a Quote

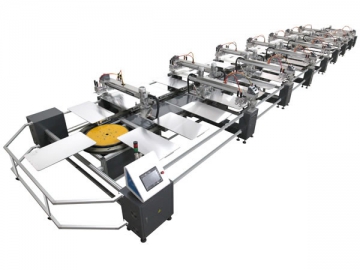

The SPO automatic flat screen printing machine is developed based on circular screen printing machine, with better performance and more advanced technology. The modular design, as well as the high-strength aluminium alloy structure and the high-precision servo drive main rotating system for the automatic flat screen printing machine, is conducive to the stable operation, accurate register, and reliable performance of the screen printing machine.

The printing machinery is suitable for the production with water-based dyestuff, heat-set ink, and rubber cement. Coming with the function of flocking, the flat screen printer is applicable for printing and flocking on various kinds of cut-parts and garment.

Technical Parameters of Automatic Flat Screen Printing Machine
Model SPO-6/24 SPO-8/30 SPO-10/36 SPO-12/42 SPO-14/48 SPO-16/54
Print Colour 6 8 10 12 14 16
Station 24 30 36 42 48 54
Max. Printing Area 500×700mm 500×700mm 500×700mm 500×700mm 500×700mm 500×700mm
Max. Platen Size 530×950mm 530×950mm 530×950mm 530×950mm 530×950mm 530×950mm
Max. Size of Screen Frame 600×1000mm 600×1000mm 600×1000mm 600×1000mm 600×1000mm 600×1000mm
Max. Air Consumption 6bar,
144L/min
6bar,
144L/min
6bar,
144L/min
6bar,
144L/min
6Bar,
144L/min
6Bar,
144L/min
Output 600pcs/h 600pcs/h 600pcs/h 500pcs/h 500pcs/h 500pcs/h
Main Motor Power 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW 3.0kW
Motor Power for Each Print Head 0.55kW 0.55kW 0.55kW 0.55kW 0.55kW 0.55kW
Max. Dryer Power 13.6kW 13.6kW 13.6kW 13.6kW 13.6kW 13.6kW
Power Supply AC380V/ 3PH/50Hz AC380V/ 3PH/50Hz AC380V/ 3PH/50Hz AC380V/ 3PH/50Hz AC380V/ 3PH/50Hz AC380V/ 3PH/50Hz
Overall Dimension 1122×320×
133cm
1362×320×
133cm
1602×320×
133cm
1842×320×
133cm
2082×320×
133cm
2322×3200×
133cm
Weight 2000kg 2600kg 3200kg 3800kg 4400kg 5000kg
Samples
