MEMS 1xN Polarization Maintaining (PM) Optical Switch
Request a Quote
Module4 (1×2 to 1×16)
MEMS 1xN PM optical switch module (1×2 to 1×16) is a non-latching optical switch based on Micro-Electro-Mechanical System (MEMS) technology. The optical switch module allows channel selection between a single input fiber and N output fibers. By rotating the MEMS mirror of the PM optical switch, the path of the optical signal can be controlled and switched to accommodate connection requests while simultaneously maintaining the polarization state of the signal.
This PM optical switch is also a bi-directional switch that can function as Nx1 selector. The MEMS 1xN PM optical switch module is characterized by compact size, long-life operation with exceptional reliability and durability.
Features
- Compact size, easy to mount
- High reliability and durability
- Fast switching speed
- Telcordia GR-1073-CORE and RoHS compliant
Applications
- Optical communication
- Fiber sensing
- Remote fiber monitoring (working with OTDR or OCM)
- Optical network routing
- Measurement resource sharing
- Optical network protection and restoration

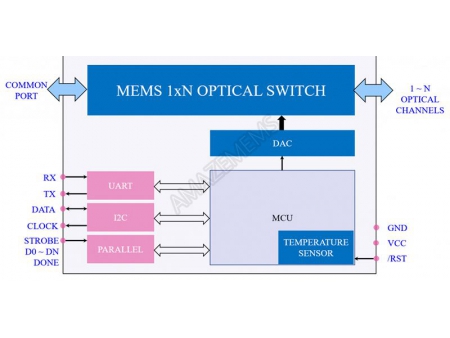

Schematic Diagram
Optical Specifications
| PARAMETER | UNIT | VALUE | |
| Wavelength | nm | 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650 | |
| Test Wavelength | nm | 1310 / 1550 / 1625 or 1650 | |
| Insertion Loss | 1 x 2 | dB | ≤ 1.0, typical 0.8 |
| 1 x 4 | ≤ 1.2, typical 0.9 | ||
| 1 x 8 | ≤ 1.4, typical 1.1 | ||
| 1 x 16 | ≤ 2.4, typical 1.9 | ||
| 1 x 24 / 32 | ≤ 2.6, typical 2.0 | ||
| 1 x 48 / 64 | ≤ 2.8, typical 2.2 | ||
| Return Loss | dB | ≥ 30 | |
| Repeatability | dB | ≤ 0.1 | |
| Crosstalk | dB | ≥ 30 | |
| PDL | 2 ≤ N ≤ 8 | dB | ≤ 0.2 |
| 8 < N ≤ 64 | ≤ 0.4 | ||
| WDL | 2 ≤ N ≤ 8 | dB | ≤ 0.3 |
| 8 < N ≤ 64 | ≤ 0.6 | ||
| TDL | 2 ≤ N ≤ 8 | dB | ≤ 0.3 |
| 8 < N ≤ 64 | ≤ 0.6 | ||
| Extinction Ratio | N ≤ 4 | dB | ≥ 18 |
| 4 < N ≤ 8 | ≥ 16 | ||
| 8 < N ≤ 64 | ≥ 15 | ||
| Switch Time5 | 2 ≤ N ≤ 8 | ms | ≤ 5 |
| 8 < N ≤ 64 | ≤ 10 | ||
| Durability | cycle | ≥ 1 x 109 | |
| Maximum Optical Power | mW | ≤ 500 | |
| Latching Type | Non-latching | ||
