Helical Hydraulic Rotary Actuator

Rotary actuator for serving as rotating unit for excavator attachments

The hydraulic rotary actuator LS5 Series, specially designed for excavator attachments, is renowned for its impact resistance. Thanks to the unique guide plates on both sides, it prevents dust from entering the casing, eliminating the need for maintenance after production. This design significantly reduces maintenance costs and has received high customer acclaim.

Specifications

Model	9	40	47	73	105	140	180
Operating Pressure [bar]	210	210	210	210	210	210	210
Drive Torque [Nm]	900	4000	4700	7300	10500	14000	18000
Holding Torque [Nm]	2400	9000	12000	18000	26000	35000	46000
Displacement [cc]	234	790	1180	1870	1995	2640	3460
Weight [kg]	27	50	125	160	220	290	440
Rotating Angle [°]	180	180	180	180	134	134	134

Applications

Excavator attachments, including rotational quick-coupler and tilt quick-coupler systems.

Features

Capable of handling heavy loads, impact-resistant, and durable.
Low space requirement for installation.
Suitable for quick-coupler systems in excavators.
Low maintenance costs.
Equipped with a built-in bi-directional overflow valve to withstand high hydraulic oil pressure caused by impact (pressure spikes).
The internal oil channel effectively prevents hydraulic hoses from tangling and wearing.

Output Type

Q - Single Flange Output

Mounting Options

D - Foot Mounting

Full Specifications & Additional Information

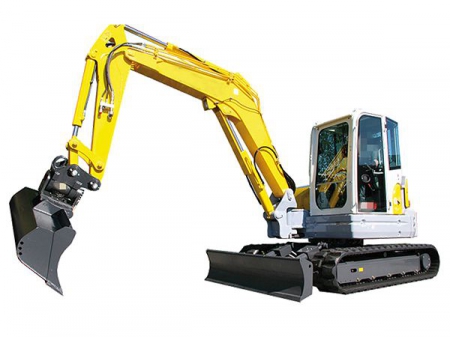

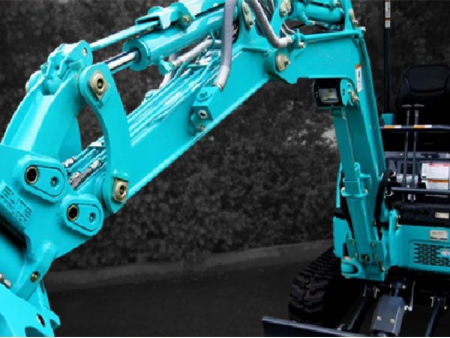

Rotary Actuator used in Engineering Machinery

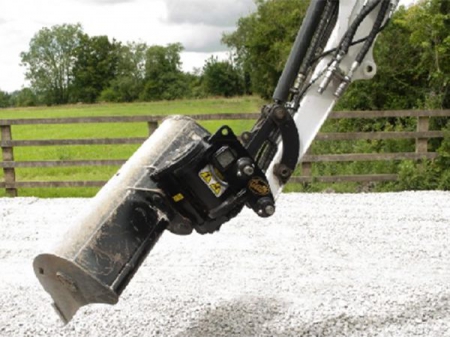

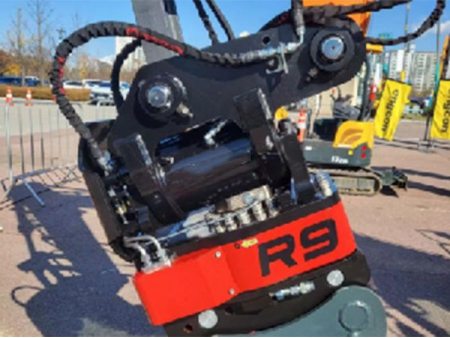

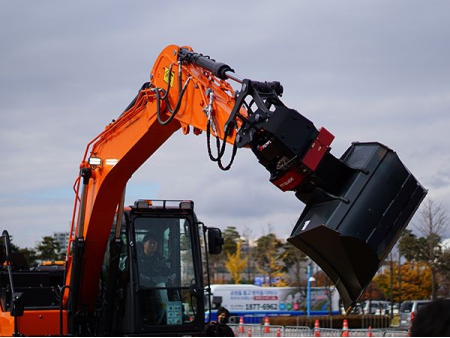

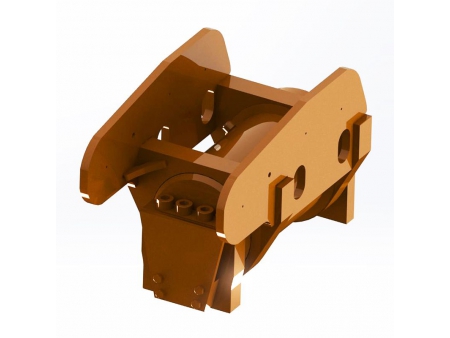

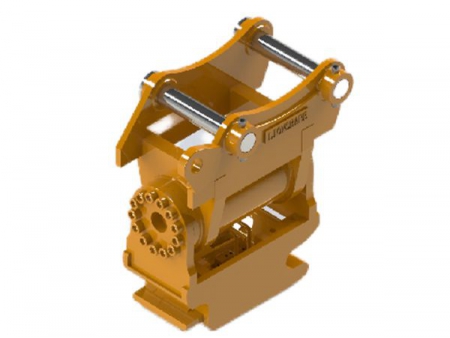

Excavator attachments

What is the mechanism of a hydraulic rotary actuator?

This hydraulic device operates on a design involving multiple helical gears. The rotation of these gears are driven by the piston, translating linear motion into rotational movement. The design of the hydraulic rotary actuator is simple but requires precision manufacturing to ensure functional efficiency and brand reliability.

What are the advantages of helical hydraulic rotary actuators?

The rotary actuator is a compact hydraulic device suitable for applications requiring heavy load tilting or rotational movements (involving high torque). It is easy to control, highly precise, and efficient. Despite its high power, it requires minimal installation space. The rotary actuator achieves high functional efficiency and reliability. Internally, it is protected from dust, dirt, and moisture.

Where can your LS5 series hydraulic rotary actuator be applied in construction machinery?

Our LS5 series hydraulic rotary actuator is specifically designed for excavators, primarily used for the rotation of excavator buckets.
