LS8 Series
Request a Quote

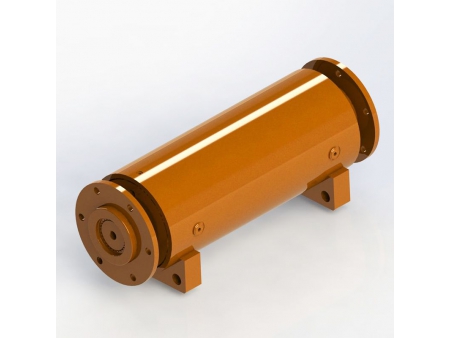

Helical Hydraulic Rotary Actuator
Rotary actuator
The hydraulic rotary actuator LS8 Series is featuring a parallel key shaft output, designed for ease of installation and use. It's particularly suitable for applications requiring high torque and increased cyclic rates. The actuator offers a splined shaft output capable of high impact resistance and features a large 360° rotation angle.
Specifications
| Model | 7 | 13 | 28 |
| Operating Pressure [bar] | 210 | 210 | 210 |
| Holding Torque [Nm] | 700 | 1300 | 2800 |
| Displacement [cc] | 140 | 395 | 1270 |
| Weight [kg] | 11.5 | 24.5 | 50 |
| Rotating Angle [°] | 180 | 180 | 360 |
Applications
Agricultural machinery, construction, material handling, mining equipment, oil and natural gas extraction equipment, etc.
Features
- High durability and sealed components suitable for harsh environments.
- Compact design with high power density, fitting in tight spaces.
- Capable of reverse driving under overload conditions.
Output Type
- S - Single Splined Shaft / Parallel Key Shaft Output
Mounting Options
- F - Front Flange Mounting
Full Specifications & Additional Information

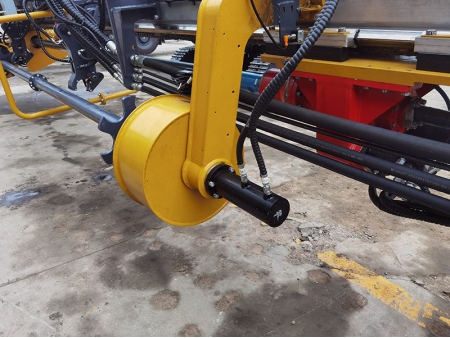

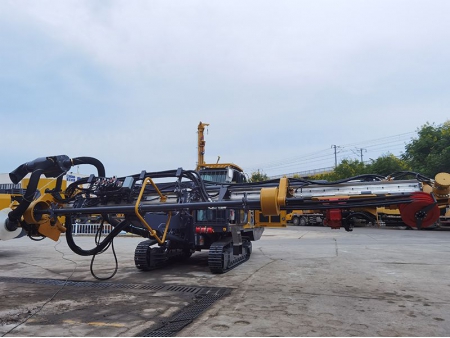

Rotary Actuator used in Engineering Machinery
