LS6 Series
Request a Quote
Helical Hydraulic Rotary Actuator
Rotary actuator for serving as rotating unit for mining & drilling equipment
The hydraulic rotary actuator LS6 series ensures strength while offering an excellent torque range, making it suitable for offshore oil drilling scenarios and other similar applications. This product also possesses precise positioning capabilities, allowing it to accurately maintain a midpoint position and deliver consistent torque in both directions.
Specifications
| Model | 40 | 63 | 90 |
| Drive Torque [Nm]@21MPa | 4000 | 6300 | 9000 |
| Holding Torque [Nm]@21MPa | 9000 | 15000 | 22000 |
| Rotating Angle [°] | 180 | 180 | 180 |
| Max. Moment [Nm] | 60000 | 100000 | 150000 |
Applications
Large arm rotation of mining road repair machine, offshore oil drilling platforms, etc.
Features
- High torque, surpassing counterparts with similar cylinders diameter in torque output.
Output Type
- Q - Single Flange Output
Mounting Options
- D - Foot Mounting
- F - Front Flange Mounting
Full Specifications & Additional Information

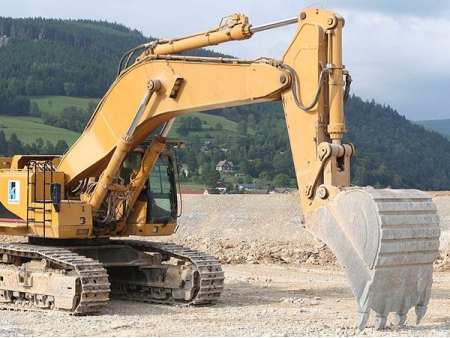

Rotary Actuator used in Engineering Machinery

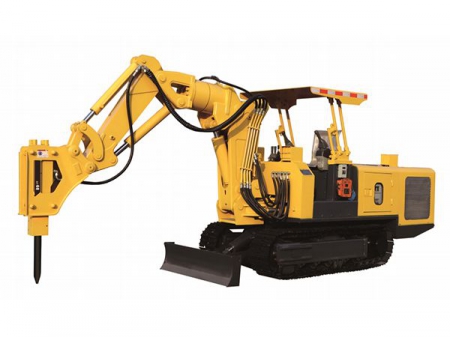

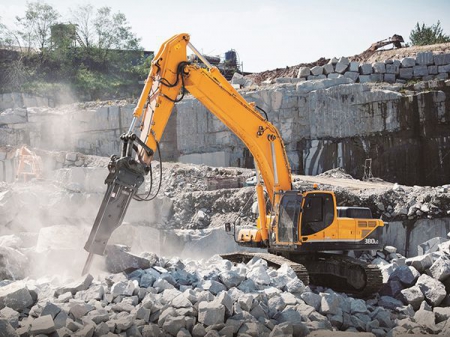

Excavator with rock breaker boom
