SmCo Disc & Rod Magnets
- Standard Size Range: D=1-130mm, T=0.3-120mm
- Maximum Cylinder Dimensions: D130×T40mm, D80×T120mm
- Minimum Cylinder Dimensions: D1×T0.3mm
Note: Due to the inherent brittleness of SmCo material, extremely large diameters and thin thicknesses may compromise the integrity of the magnet during assembly. For larger dimensions, consult our technical or sales team for specialized advice.

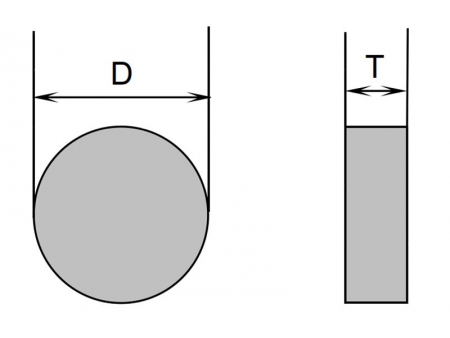

| Cylinder | |
| D | 1-130mm |
| T | 0.3-100mm |
| Part Number | ØD(inch/mm) | T(inch/mm) |
| 12.21.280.00D1 | 0.04 / 1.016 | 0.1 / 2.54 |
| 12.21.280.00D2 | 0.098 / 2.5 | 0.196 / 5 |
| 12.21.280.00D3 | 0.118 / 2.997 | 0.118 / 2.997 |
| 12.21.280.00D4 | 0.196 / 5 | 0.393 / 10 |
| 12.21.280.00D5 | 0.219 / 5.562 | 0.09 / 2.286 |
| 12.21.280.00D6 | 0.25 / 6.35 | 0.2 / 5.08 |
| 12.21.280.00D7 | 0.374 / 9.5 | 0.039 / 1 |
| 12.21.280.00D8 | 0.375 / 9.525 | 0.125 / 3.175 |
| 12.21.280.00D9 | 0.393 / 10 | 0.137 / 3.5 |
| 12.21.280.00D10 | 0.5 / 12.7 | 0.25 / 6.35 |
| 12.21.280.00D11 | 0.669 / 17 | 0.196 / 5 |
| 12.21.280.00D12 | 0.687 / 17.449 | 0.875 / 22.225 |
| 12.21.280.00D13 | 0.75 / 19.05 | 0.375 / 9.525 |
| 12.21.280.00D14 | 0.751 / 19.1 | 0.25/ 6.35 |
| 12.21.280.00D15 | 0.984 / 25 | 0.275 / 7 |
| 12.21.280.00D16 | 1 / 25.4 | 0.5 / 12.7 |
| 12.21.280.00D17 | 1.25 / 31.75 | 2 / 50.8 |
| 12.21.280.00D18 | 1.625 / 41.275 | 2.4 / 60.96 |
| 12.21.280.00D19 | 1.653 / 42 | 2.401 / 61 |
| 12.21.280.00D20 | 2 / 50.8 | 2 / 50.8 |
| 12.21.280.00D21 | 2.007 / 51 | 2.244 / 57 |
| 12.21.280.00D22 | 2.362 / 60 | 3.543 / 90 |
| 12.21.280.00D23 | 3 / 76.2 | 1.7 / 43.18 |
| 12.21.280.00D24 | 3.031 / 77 | 1.771 / 45 |
| 12.21.280.00D25 | 3.228 / 82 | 1.904 / 48.375 |
| 12.21.280.00D26 | 3.5 / 88.9 | 1.9 / 48.26 |
| 12.21.280.00D27 | 3.543 / 90 | 1.929 / 49 |
| 12.21.280.00D28 | 3.968 / 100.8 | 1.039 / 26.4 |
| 12.21.280.00D29 | 4.559 / 115.8 | 1.122 / 28.5 |
| 12.21.280.00D30 | 5 / 127 | 2 / 50.8 |
The showcased SmCo cylindrical magnets represent just a fraction of our comprehensive range of standard high-temperature cylindrical magnets. Feel free to contact us if your desired dimensions are not listed. We specialize in the design, engineering, and supply of customized SmCo disc and rod magnets to cater to your specific needs.

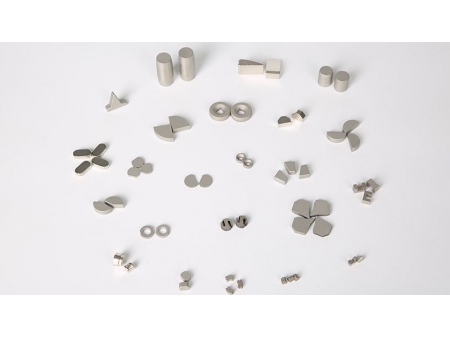

Consisted of samarium and cobalt with an atomic ratio of 1:5
| Item | Unit | SmCo5 Magnet |
| Density (D) | G/Cm3 | 8.3 |
| Curie Temperature (Tc) | K | 1000 |
| Vickers Hardness (Hv) | MPa | 450-500 |
| Compressive Strength (δc) | MPa | 1000 |
| Resistivity (ρ) | Ω.Cm | 5～6×10-5 |
| Bending Strength (δb) | Mpa | 150-180 |
| Tensile Strength (δt) | Mpa | 40 |
| Coeff. of Thermal Expansion (α) | (10-6/℃) | ∥ 6 ⊥12 |

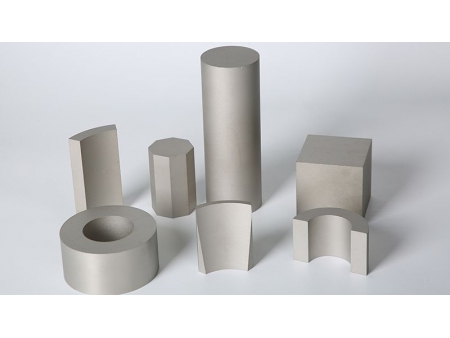

Consisted of samarium and cobalt with an atomic ratio of 2:17
| Item | Unit | Sm2Co17 Magnet |
| Density (D) | G/Cm3 | 8.4 |
| Curie Temperature (Tc) | K | 1100 |
| Vickers Hardness (Hv) | MPa | 550-600 |
| Compressive Strength (δc) | MPa | 800 |
| Resistivity (ρ) | Ω.Cm | 8～9×10-5 |
| Bending Strength (δb) | Mpa | 130-150 |
| Tensile Strength (δt) | Mpa | 35 |
| Coeff. of Thermal Expansion (α) | (10-6/℃) | ∥ 8 ⊥11 |
Please note that the above values are for reference purposes only and should not be used as the sole basis for material acceptance or rejection.
- Kraft paper packaging
- Plastic tube packaging
- Skin packaging
- Vacuum packaging
- Brown carton packaging
- Bubble wrap packaging
Beyond the standard packaging options listed above, NGYC can offer specialized packaging requirements to meet your specific needs.
