Special Shape SmCo Magnets

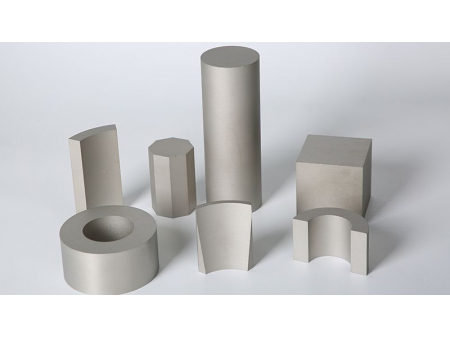

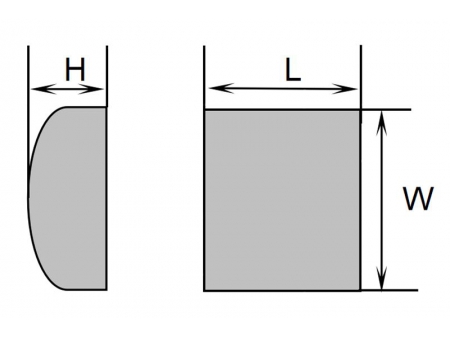

- Standard Size Range: W=3-130mm, H=1.5-100mm, L=1-130mm
- Maximum Special Shape Dimensions: W130×H40×L130mm, W80×H50×L130mm
- Minimum Special Shape Dimensions: W3×H2×L0.5mm
Note: For special shapes, if you desire one large dimension, other dimensions must be proportionally reduced to avoid breakage from SmCo's brittleness during assembly. For sizes exceeding the standards above, consult our technical or sales team for optimal solutions.
| Special Shape | |
| W | 3-100mm |
| H | 1-100mm |
| L | 1-100mm |
| Part Number | L(inch/mm) | W(inch/mm) | H(inch/mm) |
| 12.21.280.00Y1 | 0.027 / 0.685 | 0.098 / 2.489 | 0.193 / 4.902 |
| 12.21.280.00Y2 | 0.125 / 3.175 | 0.125 / 3.175 | 0.067 / 1.701 |
| 12.21.280.00Y3 | 0.3 / 7.62 | 0.18 / 4.572 | 0.231 / 5.867 |
| 12.21.280.00Y4 | 0.393 / 10 | 0.196 / 5 | 0.196 / 5 |
| 12.21.280.00Y5 | 0.4 / 10.16 | 0.09 / 2.286 | 0.08 / 2.032 |
| 12.21.280.00Y6 | 0.5 / 12.7 | 0.375 / 9.525 | 0.125 / 3.175 |
| 12.21.280.00Y7 | 0.59 / 15 | 0.299 / 7.6 | 0.157 / 4 |
| 12.21.280.00Y8 | 0.7 / 17.78 | 0.375 / 9.525 | 0.18 / 4.572 |
| 12.21.280.00Y9 | 0.787 / 20 | 0.59 / 15 | 0.255 / 6.5 |
| 12.21.280.00Y10 | 0.8 / 20.32 | 0.34 / 8.636 | 0.5 / 12.7 |
| 12.21.280.00Y11 | 0.931 / 23.667 | 1.068 / 27.127 | 0.124 / 3.149 |
| 12.21.280.00Y12 | 0.984 / 25 | 0.708 / 18 | 0.377 / 9.6 |
| 12.21.280.00Y13 | 1 / 25.4 | 0.59 / 14.986 | 0.203 / 5.156 |
| 12.21.280.00Y14 | 1.181 / 30 | 1.181 / 30 | 0.393 / 10 |
| 12.21.280.00Y15 | 1.377 / 35 | 0.984 / 25 | 0.555 / 14.1 |
| 12.21.280.00Y16 | 1.5 / 38.1 | 0.25 / 6.35 | 0.311 / 7.899 |
| 12.21.280.00Y17 | 1.574 / 40 | 0.46 / 11.7 | 0.531 / 13.5 |
| 12.21.280.00Y18 | 1.968 / 50 | 1.77 / 45 | 0.59 / 15 |
| 12.21.280.00Y19 | 2 / 50.8 | 1.575 / 40.005 | 0.472 / 11.988 |
| 12.21.280.00Y20 | 2.362 / 60 | 1.574 / 40 | 0.374 / 9.5 |
| 12.21.280.00Y21 | 2.535 / 64.389 | 0.96 / 24.384 | 0.67 / 17.018 |
| 12.21.280.00Y22 | 2.755 / 70 | 1.822 / 46.3 | 0.787 / 20 |
| 12.21.280.00Y23 | 3 / 76.2 | 1.919 / 48.742 | 1.451 / 36.855 |
| 12.21.280.00Y24 | 3.1496 / 80 | 0.728 / 18.5 | 0.236 / 6 |
| 12.21.280.00Y25 | 3.582 / 91 | 1.03 / 26.177 | 1.437 / 36.5 |
| 12.21.280.00Y26 | 3.627 / 92.125 | 0.371 / 9.423 | 0.236 / 5.994 |
| 12.21.280.00Y27 | 3.937 / 100 | 3.937 / 100 | 1.181 / 30 |
| 12.21.280.00Y28 | 4.133 / 105 | 0.55 / 14 | 0.157 / 4 |
| 12.21.280.00Y29 | 4.232 / 107.492 | 0.938 / 23.825 | 0.492 / 12.496 |
| 12.21.280.00Y30 | 4.251 / 108 | 1.055 / 26.8 | 0.433 / 11 |

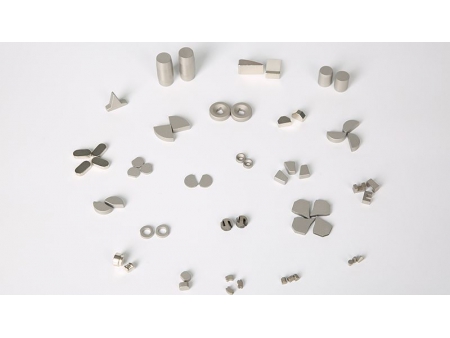

The special shape SmCo magnets displayed above represent only a fraction of our extensive collection of special shape magnets. If your requirements are not covered here, please directly contact us with your specifications. At NGYC, we focus on designing, engineering, and supplying custom SmCo magnets tailored to meet your special requirements.
Consisted of samarium and cobalt with an atomic ratio of 1:5
| Item | Unit | SmCo5 Magnet |
| Density (D) | G/Cm3 | 8.3 |
| Curie Temperature (Tc) | K | 1000 |
| Vickers Hardness (Hv) | MPa | 450-500 |
| Compressive Strength (δc) | MPa | 1000 |
| Resistivity (ρ) | Ω.Cm | 5～6×10-5 |
| Bending Strength (δb) | Mpa | 150-180 |
| Tensile Strength (δt) | Mpa | 40 |
| Coeff. of Thermal Expansion (α) | (10-6/℃) | ∥ 6 ⊥12 |
Consisted of samarium and cobalt with an atomic ratio of 2:17
| Item | Unit | Sm2Co17 Magnet |
| Density (D) | G/Cm3 | 8.4 |
| Curie Temperature (Tc) | K | 1100 |
| Vickers Hardness (Hv) | MPa | 550-600 |
| Compressive Strength (δc) | MPa | 800 |
| Resistivity (ρ) | Ω.Cm | 8～9×10-5 |
| Bending Strength (δb) | Mpa | 130-150 |
| Tensile Strength (δt) | Mpa | 35 |
| Coeff. of Thermal Expansion (α) | (10-6/℃) | ∥ 8 ⊥11 |
Please note that the above values are for reference purposes only and should not be used as the sole basis for material acceptance or rejection.
